Question: 2. (25 points) Analyze assembly program Consider the following code segment. 02 CLR MOV.W MOV.W MOV.B 05 lnxt: BIT.W JNZ INC lakip: RRA.W DEC.B JNZ

2. (25 points) Analyze assembly program Consider the following code segment.

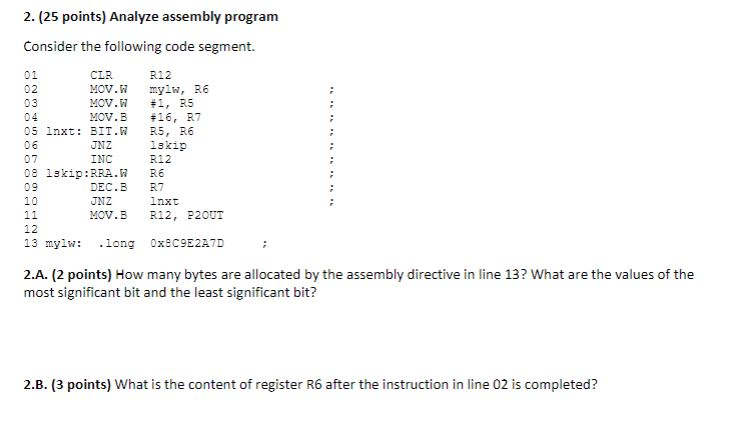

2. (25 points) Analyze assembly program Consider the following code segment. 02 CLR MOV.W MOV.W MOV.B 05 lnxt: BIT.W JNZ INC lakip: RRA.W DEC.B JNZ MOV.B R12 mylw, RO +1, R5 16. R7 R5, R6 lakip R12 R6 R7 Inxt R12, P2OUT 00 ono 13 mylw: long OxeC9E2A7D 2.A. (2 points) How many bytes are allocated by the assembly directive in line 13? What are the values of the most significant bit and the least significant bit? 2.B. (3 points) What is the content of register R6 after the instruction in line 02 is completed

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

2. (25 points) Analyze assembly program Consider the following code segment. 02 04 06 01 CLR R12 MOV.W mylw, R6 03 MOV.W #1, R5 MOV.B #16, R7 05 lnxt: BIT.W R5, R6 JNZ lskip INCR12 08 lskip:RRA.W R6...

2. (25 points) Analyze assembly program Consider the following code segment. 01 CLR R12 02 MOV.W myw, R6 03 MOV.W #1, R5 04 MOV.W #16, R7 05 Inxt: BIT.W R5, R6 06 JNZ lskip 07 INC.W R12 08 Iskip:...

2. (25 points) Analyze assembly program Consider the following code segment. 01 02 03 04 CLR MOV MOV MOV 05 1nxt: BIT JNZ INC 08 1skip: RRA DEC UNZ R12 myw, R6 #0x0001, R5 #16, R7 R5, R6 06 07 1skip...

3. (25 points) Analyze assembly program Consider the following code segment. Istr: .string "You will be tested!" Istrf: .text Assemble into program memory. RESET: StopWDT: (2) Initialize stackpointer...

3. (25 points) Analyze assembly program Consider the following code segment. Istr: .string "You will be tested!" Istrf: ;-------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...

3. (25 points) Analyze assembly program Consider the following code segment. Istr: .string "You will be tested!" 1strf: .text ; Assemble into program memory. RESET: StopWDT: mov.W mov.W mov.W mov.W...

3. (25 points) Analyze assembly program Consider the following code segment. Istr: .string "You will be tested!" Istrf: .text ; Assemble Into program memory. (2) . (2) RESET: Dov.W STACK END, SP (2)...

Consider the following code segment. OO CLR MOV.W MOV.W MOV.B BIT.W Inxt: JNZ NOLD CO JO AWN R12 mylw, R6 #2, B5 716, R7 R5, B6 1skip R12 R6 R7 Inxt R12, 22001 INC 1skip: RRA.W DEC.B JNZ MOV.B 13...
