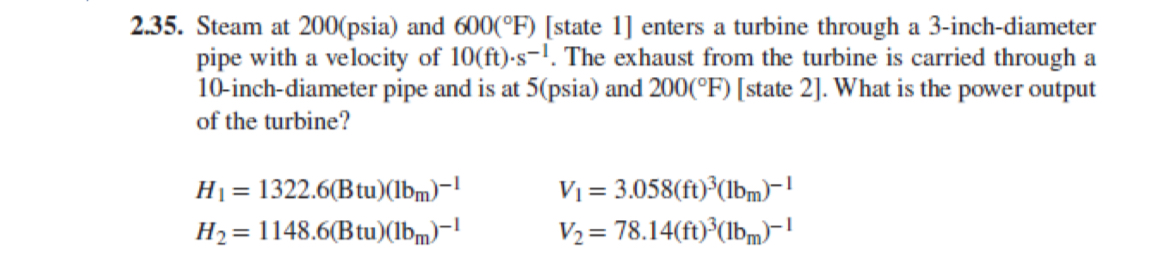

2.35. Steam at 200(a) and 600(F)[state 1] enters a turbine through a 3-inch-diameter pipe with a velocity of 10(ft)*s-1. The exhaust from the turbine is carried through a 10-inch-diameter pipe and is at 5(a) and 200(F)[state 2]. What is the power output of the turbine?
H1=1322.6(Btu)(lbm)-1,V1=3.058(ft)3(lbm)-1
H2=1148.6(Btu)(lbm)-1,V2=78.14(ft)3(lbm)-1
2 . 3 5 . Steam at 2 0 0 ( a ) and 6 0 0 ( F ) [
