Question: 2 - 3 7 . Determine the horizontal and vertical components of force that the pins A and B exert on the two - member

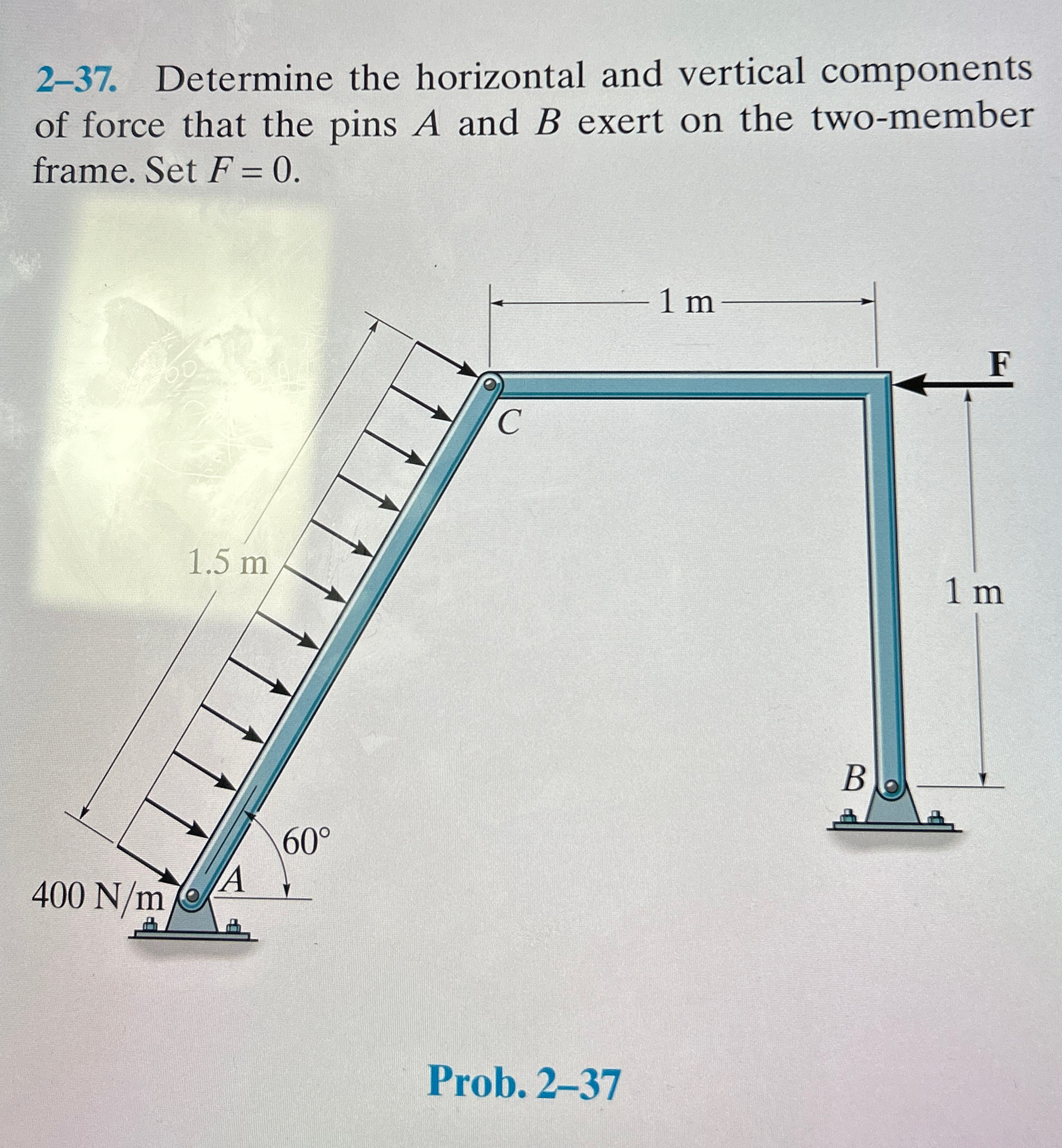

2-37. Determine the horizontal and vertical components of force that the pins A and B exert on the two-member frame. Set F=0.
Prob. 2-37
2 - 3 7 . Determine the horizontal and vertical

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

6-113. Determine the horizontal and vertical components of force which the pins exert on member AB of the frame. 6-114. Determine the horizontal and vertical components of force which the pins exert...

Q:

Determine the horizontal and vertical components of force that the pins exert on member ABCD. The pin at C is attached to member ABCD and passes through the smooth slot in member ECF. 1 ft 80 lb F 4...

Q:

Determine the horizontal and vertical components of force which the pins exert on member ABC. Given: W = 80 lb a = 6 ft b = 9 ft c = 3 ft r = 0.5 ft A, W A,

Q:

Determine the horizontal and vertical components of force that the pins exert on member ABD. 50 lb 5 ft 4 ft D B A 1 ft -3 ft- C

Q:

Determine the horizontal and vertical components of reaction which the pins exert on member AB of theframe. 300 Ib 60 4 ft -3 ft -3 ft- 500 lb ateANGAte

Q:

Determine the horizontal and vertical components of reaction which the pins exert on member EDC of theframe. 300 Ib 4 ft -3 ft- -3 ft 500 Ib

Q:

Item 3 Determine the horizontal and vertical components of force that pin A exerts on the frame.
