Question: ( 2 3 ) A beam is loaded as shown in figure. Determine the maximum deflection and, stress at B . E = 2 1

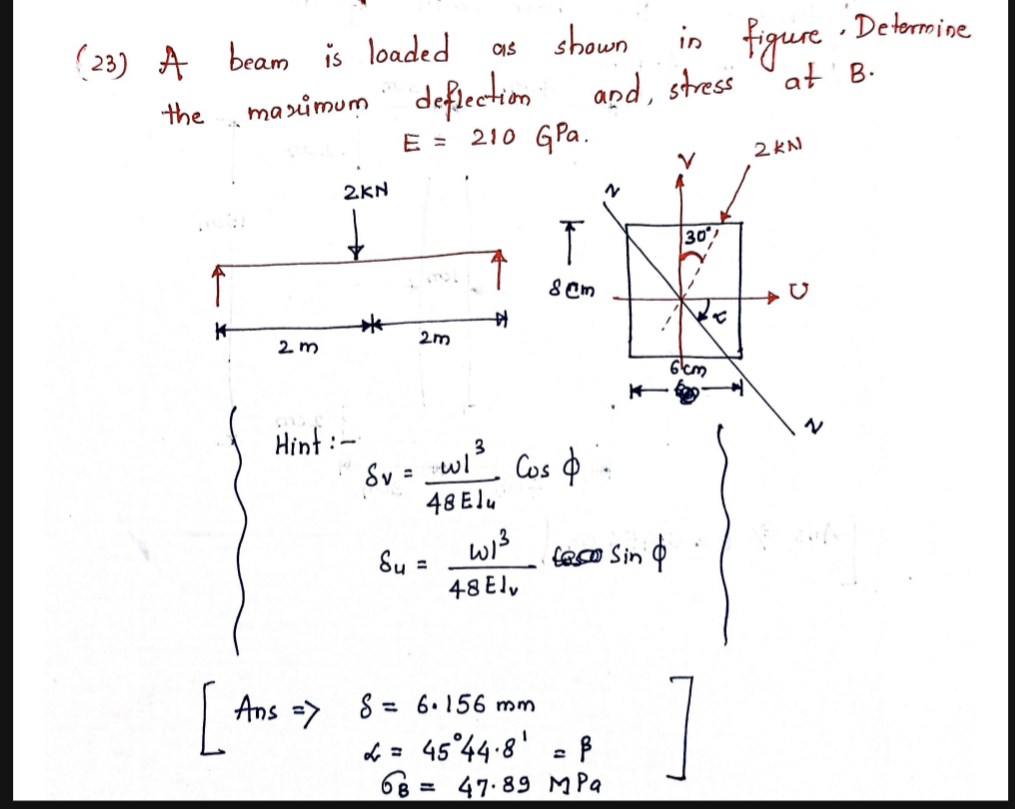

(23) A beam is loaded as shown in figure. Determine the maximum deflection and, stress at B.
E=210GPa.
{[ Hint:-v=wI348EIucos],[u=I348EIvsin]}
( 2 3 ) A beam is loaded as shown in figure.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
