Question: 2 . 3 . A steam pipe is wrapped with insulation of inner and outer radii, r i and r o , respectively. At a

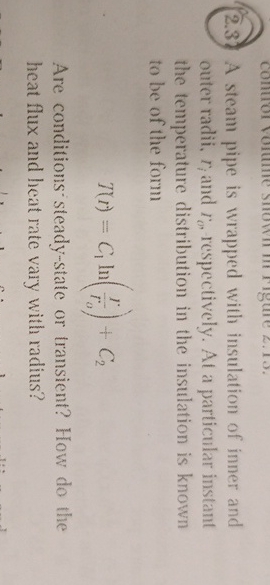

2.3. A steam pipe is wrapped with insulation of inner and outer radii, ri and ro, respectively. At a particular instant the temperature distribution in the insulation is known to be of the form
T(r)=C1ln(rro)+C2
Are conditions steady-state or transient? How do the heat flux and heat rate vary with radius?
2 . 3 . A steam pipe is wrapped with insulation

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
