Question: 2 . 4 0 Figure 2 - 5 6 shows a frame structure assembled with pins at A , B , and D . A

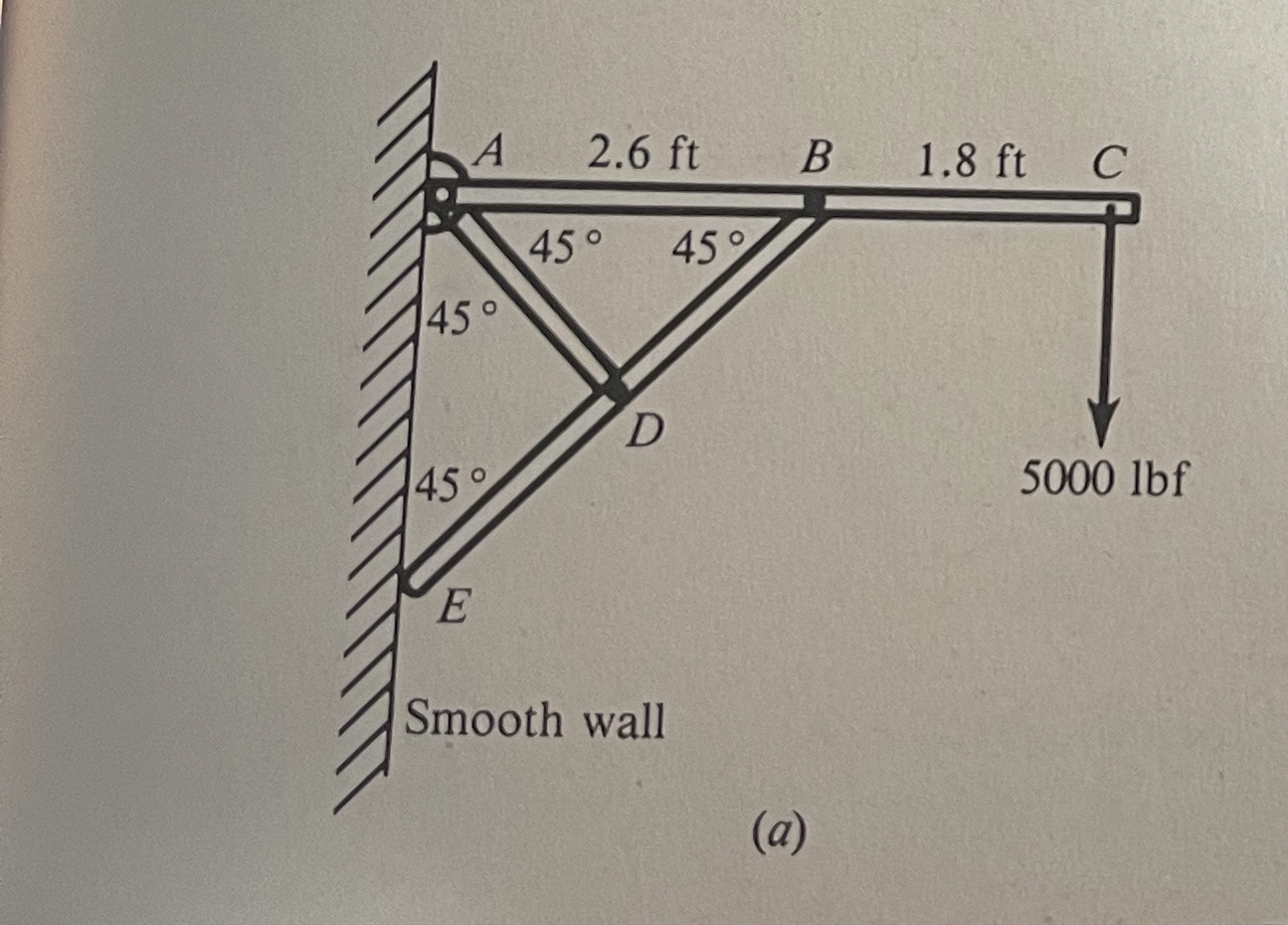

2.40 Figure 2-56 shows a frame structure assembled with pins at A,B, and D. A 5000-1bf weight is suspended from C and point E rests against a smooth wall. Draw a free-body diagram of the structure and find the reactions at A and E. Ans. RA=9900lbf,RE=8500lbf,=31
(a)
2 . 4 0 Figure 2 - 5 6 shows a frame structure

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
