Question: 2 . ( 4 5 points ) For the circuit in the figure, obtain the Thevenin equivalent circuit across the terminals of ( R

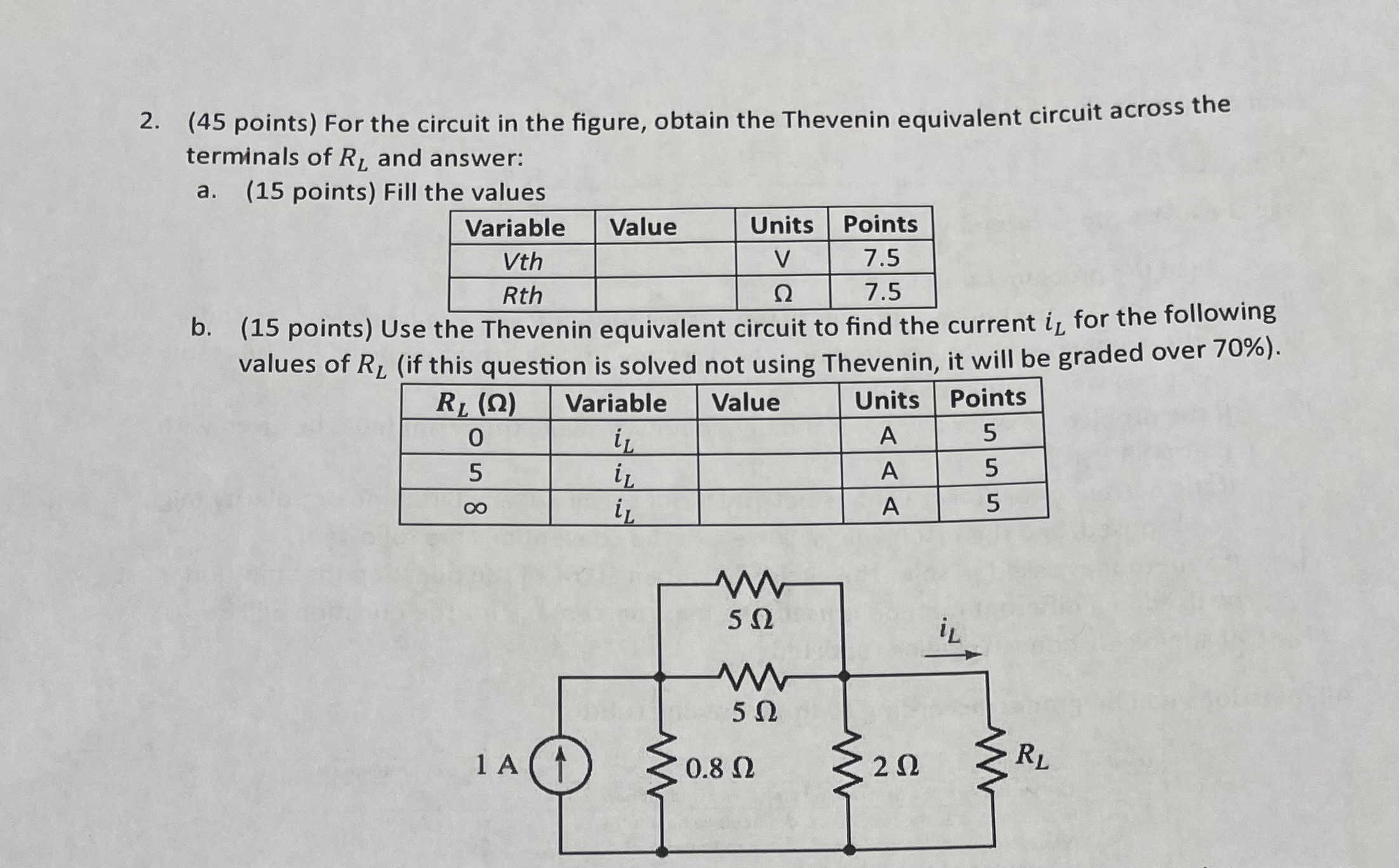

2.(45 points) For the circuit in the figure, obtain the Thevenin equivalent circuit across the terminals of \( R_{L}\) and answer:
a.(15 points) Fill the values
b.(15 points) Use the Thevenin equivalent circuit to find the current \( i_{L}\) for the following values of \( R_{L}\)(if this question is solved not using Thevenin, it will be graded over \(70\%\)).
2 . ( 4 5 points ) For the circuit in the figure,
