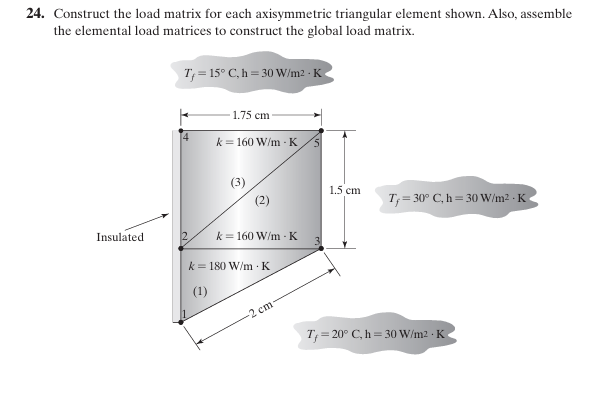

Question: 2 4 . Construct the load matrix for each axisymmetric triangular element shown. Also, assemble the elemental load matrices to construct the global load matrix.

24 .

Construct the load matrix for each axisymmetric triangular element shown. Also, assemble the elemental load matrices to construct the global load matrix.
