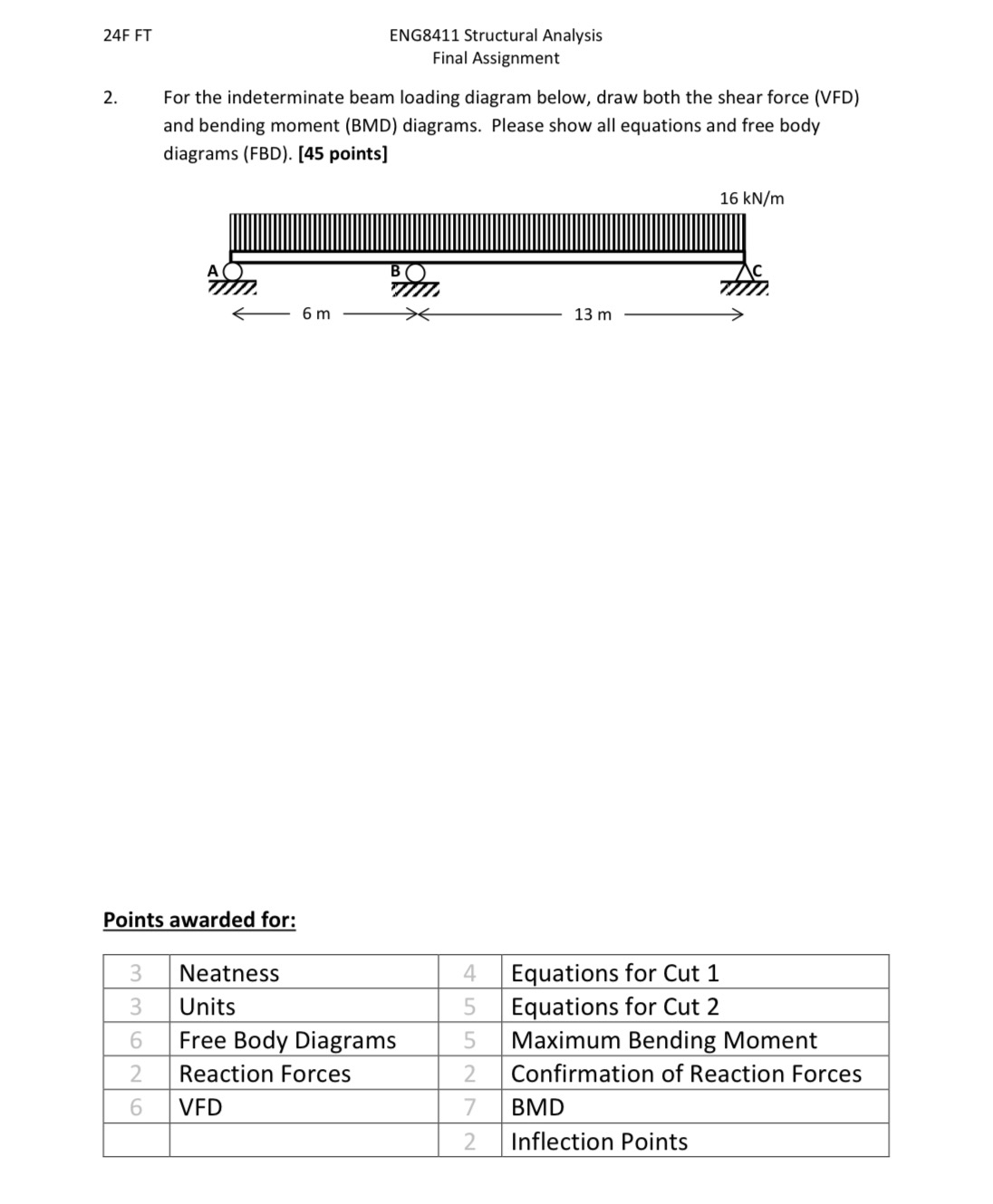

$24$F FT

ENG$8411$ Structural Analysis

Final Assignment

$2.$ For the indeterminate beam loading diagram below, draw both the shear force $($VFD$)$ and bending moment $($BMD$)$ diagrams. Please show all equations and free body diagrams $($FBD$).[45$ points$]$

Points awarded for:

$\backslash$table$[[3,$Neatness,$4,$Equations for Cut $1],[3,$Units,$5,$Equations for Cut $2],[6,$Free Body Diagrams,$5,$Maximum Bending Moment$],[2,$Reaction Forces,$2,$Confirmation of Reaction Forces$],[6,$VFD$,7,$BMD$],[,,2,$Inflection Points$]]$

Give me all steps ans free body diagram and proper solution
