Question: * 2 . 5 7 Find R e q and I in the circuit of Fig. 2 . 1 2 1 . Figure 2 .

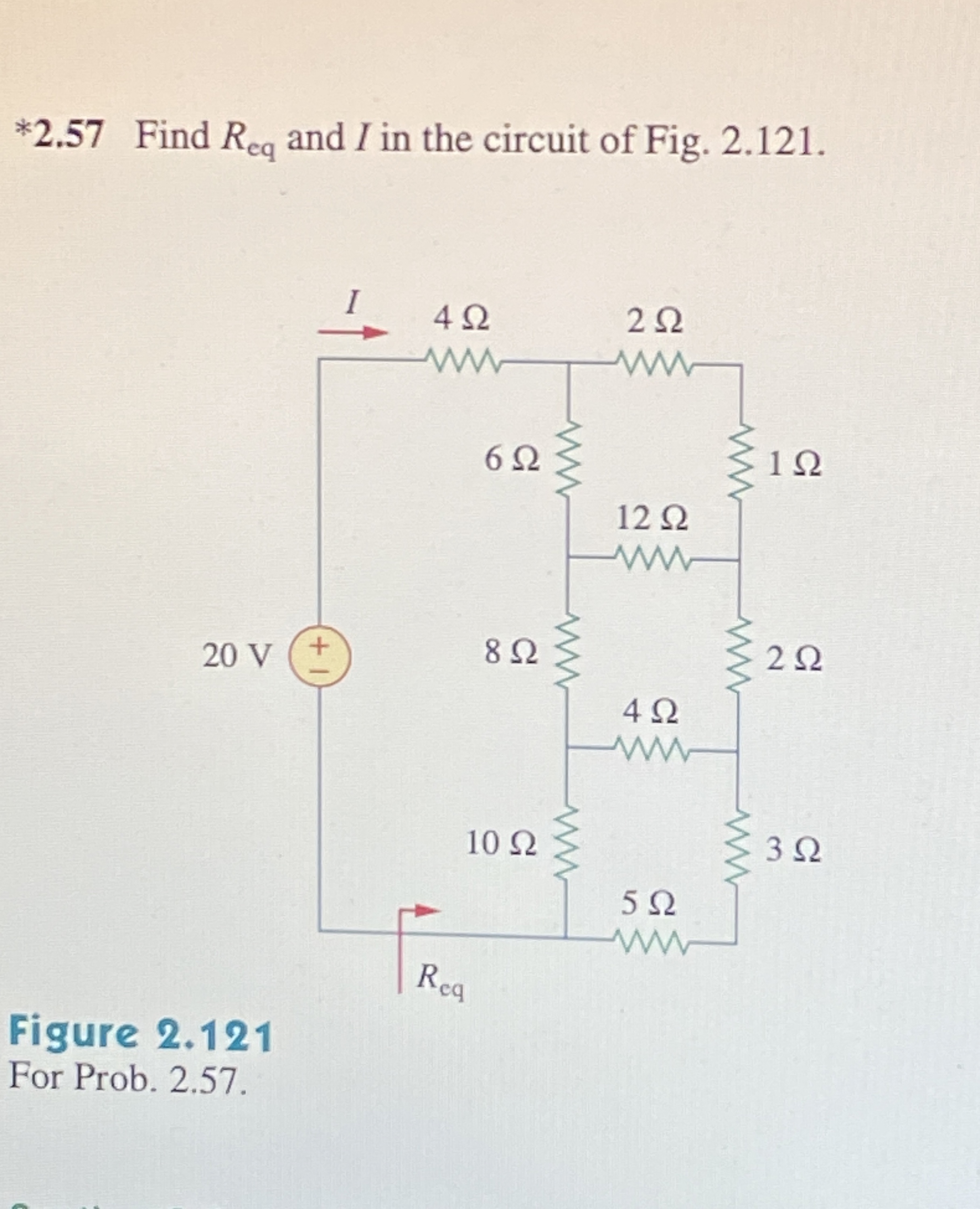

*2.57 Find Req and I in the circuit of Fig. 2.121.
Figure 2.121
For Prob. 2.57.
* 2 . 5 7 Find R e q and I in the circuit of Fig.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Electrical Engineering Questions!
