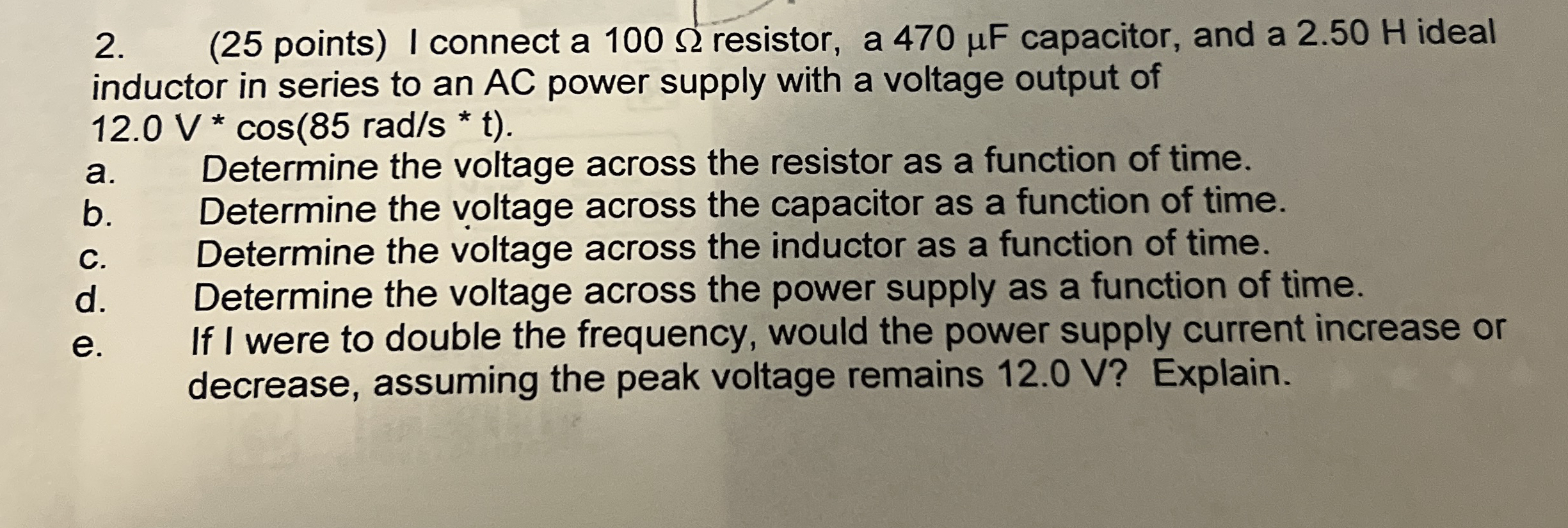

(25 points) I connect a 100 resistor, a 470F capacitor, and a 2.50 H ideal inductor in series to an AC power supply with a voltage output of * t ).
a. Determine the voltage across the resistor as a function of time.
b. Determine the voltage across the capacitor as a function of time.
c. Determine the voltage across the inductor as a function of time.
d. Determine the voltage across the power supply as a function of time.
e. If I were to double the frequency, would the power supply current increase or decrease, assuming the peak voltage remains 12.0 V ? Explain.
