Question: ( 2 5 points ) Use the Method of Joints to calculate the forces in members CG and CF for the truss shown, and state

(25

points

)

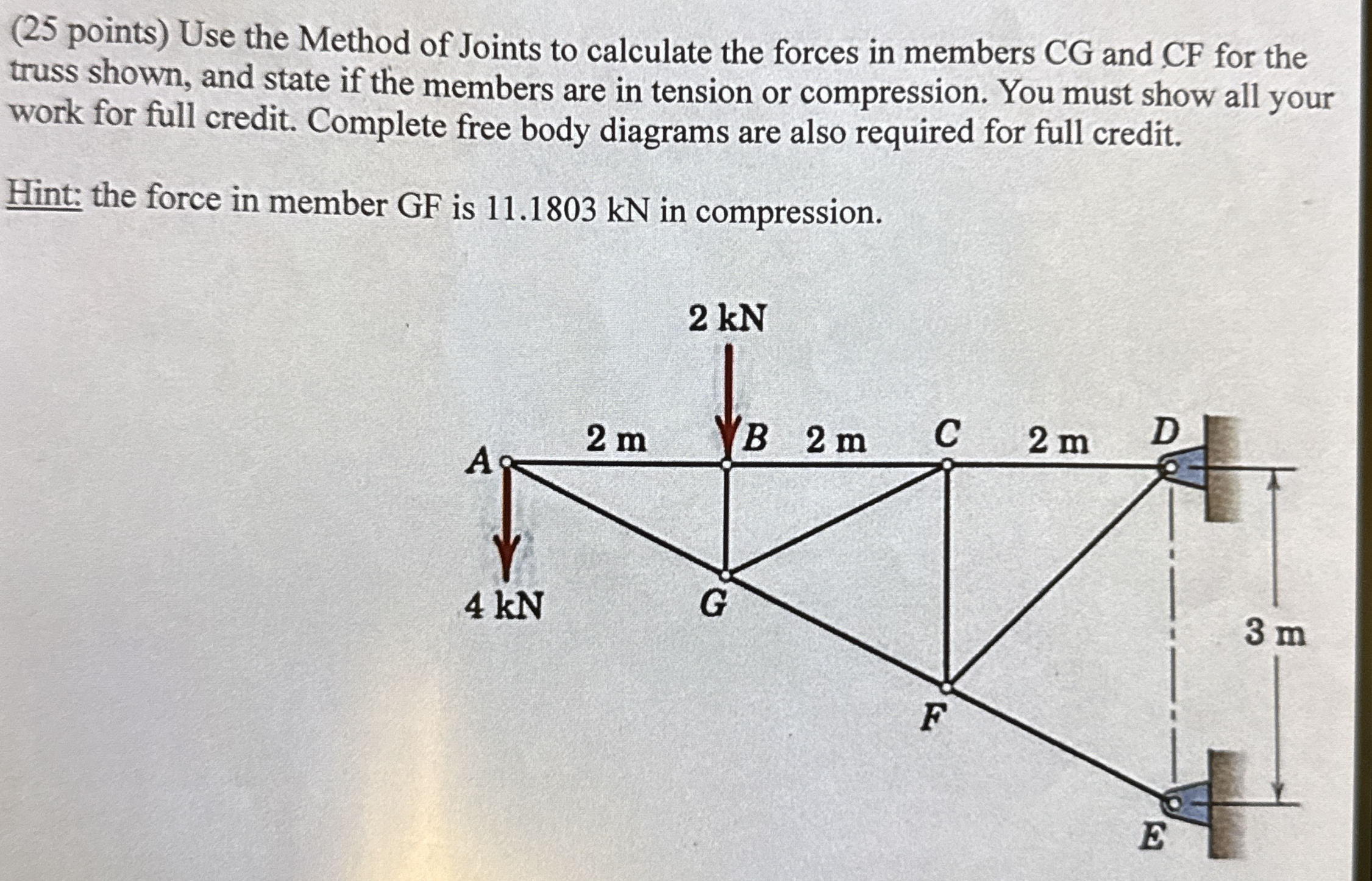

Use the Method of Joints to calculate the forces in members CG and CF for the truss shown, and state if the members are in tension or compression. You must show all your work for full credit. Complete free body diagrams are also required for full credit.

Hint: the force in member GF is

11.1803

kN in compression.

( 2 5 points ) Use the Method of Joints to

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Section B Write your calculations and final answers on the sheets provided. Hand in the sheets. Question 4 ( 2 0 . 5 marks ) - use OCR page 2 0 & 2 1 only The truss is pin - supported at A and E ,...

our calculations and final answers on the sheets provided. Hand in the sheets. Question 4 ( 2 0 . 5 marks ) - use OCR page 2 0 & 2 1 only The truss is pin - supported at A and E , with forces applied...

Problem 3 ( 2 5 points ) 3 a ) For the truss shown in Figure 3 a do the following: 1 ) Calculate the reactions at \ ( A \ ) and J . 2 ) Use the method of joints to calculate the force in members \ (...

Page 2 of 4 ZOOM + The pin jointed truss shown in Figure 1 is subjected to the applied load shown. It is supported by a pin support at Joint 5 and a roller support at Joint 1 . ( a ) On a sketch of...

16.01 0 I LIE1 .1 99% Selesai + DF = 0.60IL DE = 1.020L OG = CG = R Joint D 182 Chapter 4 Structures PROBLEMS 4/4 Determine the force in each member of the truss. Note the presence of any zero-force...

Problems Problem 1 . The roof of the 1 2 - node model you built for Homework 2 is stabilized with 4 braces as discussed in the Video lecture and as shown in Figure 1 below. The roof is shown in the x...

How to solve... : For the truss loaded and supported as shown: a ) Identify all zero - force members. b ) Identify all equal - force members. c ) Use the method of sections to find the forces in CF ,...

Computer Science Question 1 : Structural Analysis of a Truss Part A: Determine the reactions at the supports of a truss with a span of 1 0 meters and a height of 5 meters. The truss is subjected to a...
