Question: ( 2 5 pts ) Consider the following circuit. i . Determine the transfer function of this circuit, , notH ( ) ! ! )

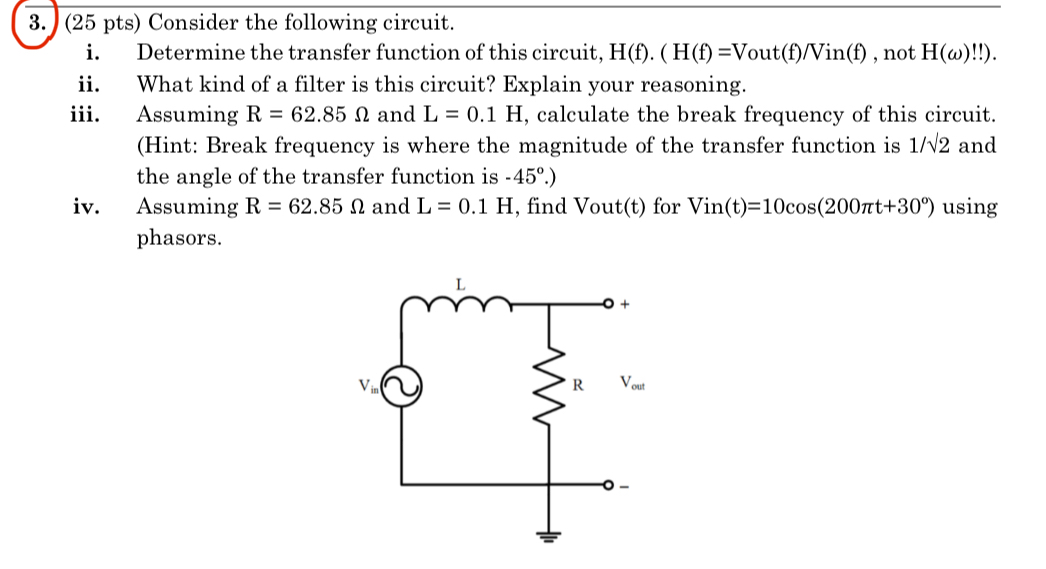

(25 pts ) Consider the following circuit.
i. Determine the transfer function of this circuit, , notH()!!).
ii. What kind of a filter is this circuit? Explain your reasoning.
iii. Assuming R=62.85 and L=0.1H, calculate the break frequency of this circuit. (Hint: Break frequency is where the magnitude of the transfer function is 122 and the angle of the transfer function is -45.)
iv. Assuming R=62.85 and L=0.1H, find Vout(t) for Vin(t)=10cos(200t+30) using phasors.
( 2 5 pts ) Consider the following circuit. i .
