Question: ( 2 5 pts ) The 1 2 - f t boom A B has a fixed end A . A steel cable is stretched

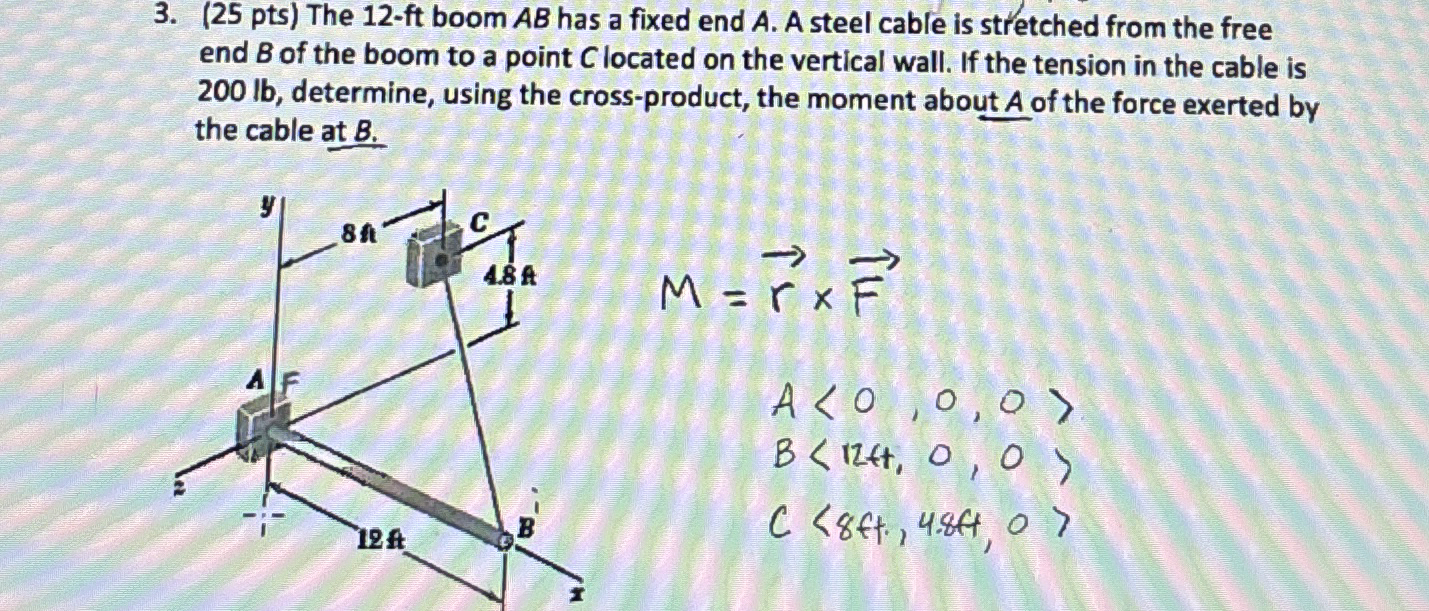

(25 pts ) The 12-ft boom AB has a fixed end A. A steel cable is stretched from the free end B of the boom to a point C located on the vertical wall. If the tension in the cable is 200 lb , determine, using the cross-product, the moment about A of the force exerted by the cable at B.
M=vec(r)vec(F)
A(:0,0,0:)
B(:12ft,0,0:)
C(:8ft,4.8ft,0:)
( 2 5 pts ) The 1 2 - f t boom A B has a fixed
