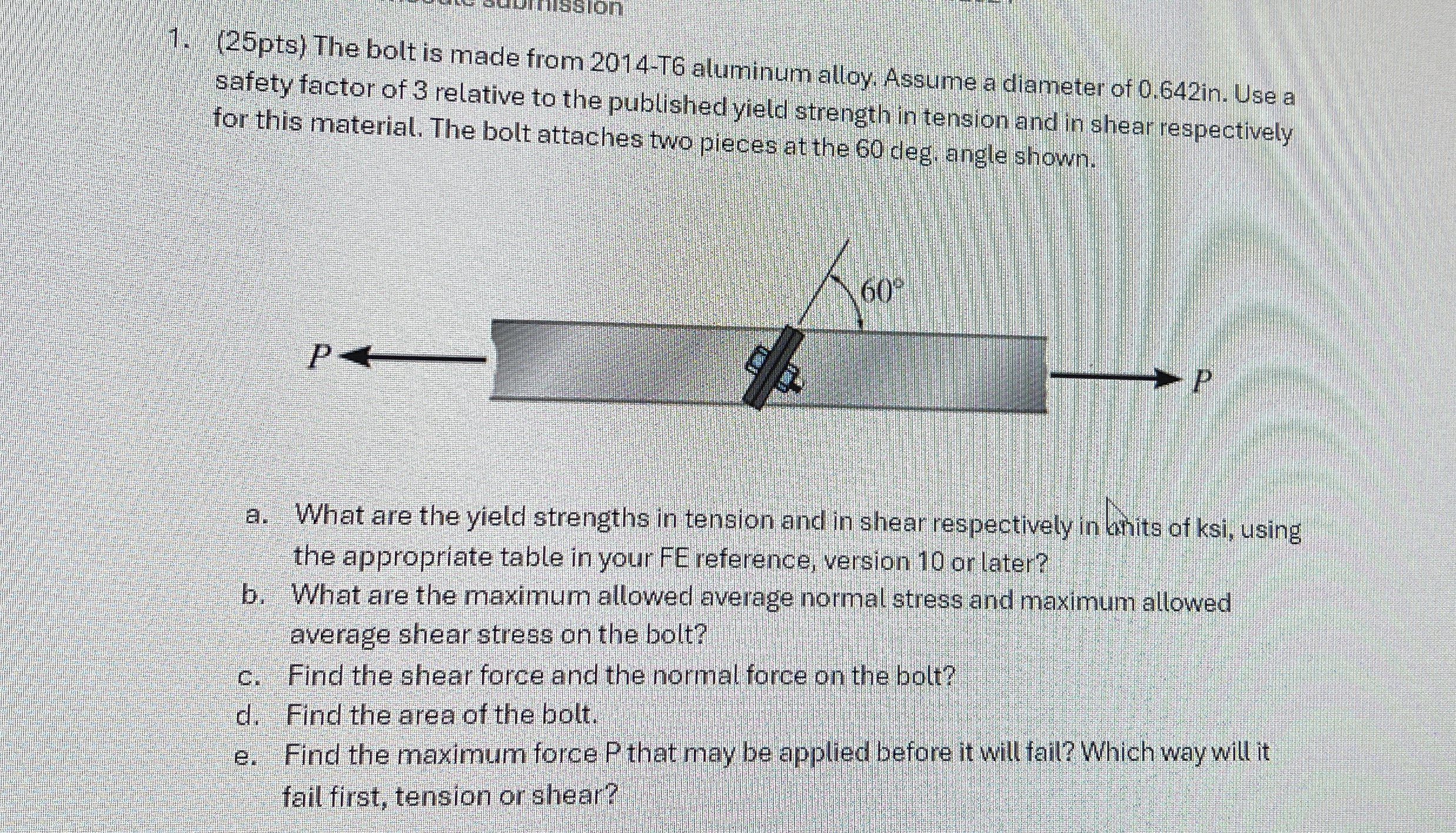

$(25$pts$)$ The bolt is made from $2014-$T$6$ aluminum alloy. Assume a diameter of $0\mathrm{.}642$ in $.$ Use a

safety factor of $3$ relative to the published yield strength in tension and in shear respectively

for this material. The bolt attaches two pieces at the $60$ deg. angle shown.

a$.$ What are the yield strengths in tension and in shear respectively in lanits of ksi, using

the appropriate table in your FE reference, version $10$ or later?

b$.$ What are the maximum allowed average normal stress and maximum allowed

average shear stress on the bolt?

c$.$ Find the shear force and the normal force on the bolt?

d$.$ Find the area of the bolt.

e$.$ Find the maximum force $P$ that may be applied before it will fail? Which way will it

fail first, tension or shear?
