Question: 2 . 8 3 A load W is supported by three cables as shown. Determine the value of W knowing that the tension in cable

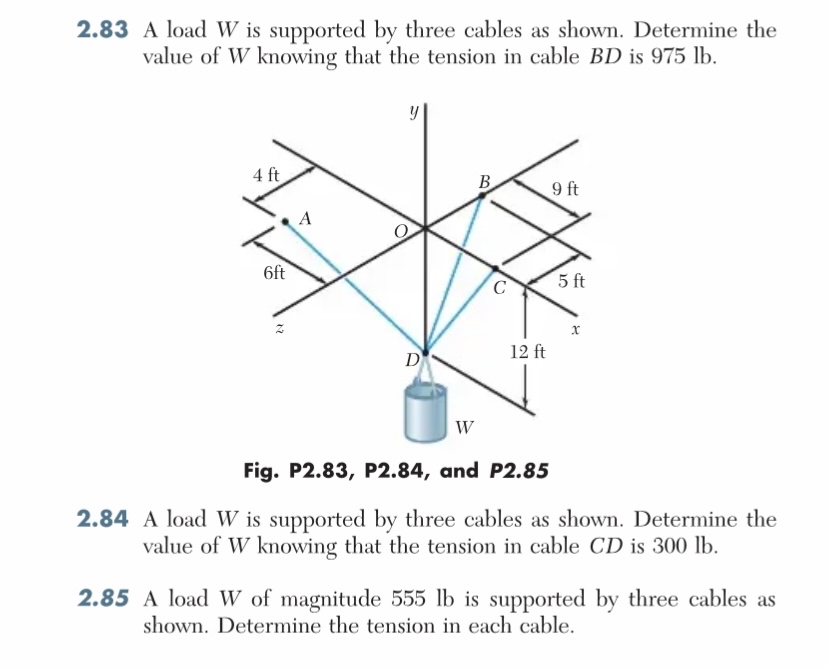

2.83 A load W is supported by three cables as shown. Determine the value of W knowing that the tension in cable BD is 975 lb .
2.84 A load W is supported by three cables as shown. Determine the value of W knowing that the tension in cable CD is 300 lb
2.85 A load W of magnitude 555 lb is supported by three cables as shown. Determine the tension in each cable.
2 . 8 3 A load W is supported by three cables as
