Question: 2 - 9 3 . The bent plate is 2 m wide. It is supported by the pin at ( A ) and

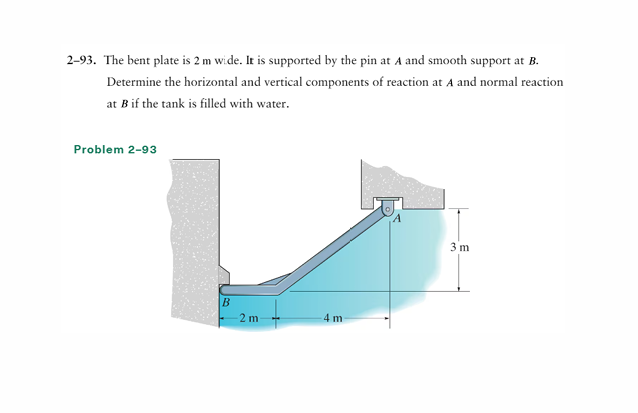

2-93. The bent plate is 2 m wide. It is supported by the pin at \( A \) and smooth support at \( B \). Determine the horizontal and vertical components of reaction at \( A \) and normal reaction at \( B \) if the tank is filled with water.
Problem 2-9:
2 - 9 3 . The bent plate is 2 m wide. It is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
