Question: * 2 - 9 6 . Represent each cable force as a Cartesian vector. 2 - 9 7 . Determine the magnitude and coordinate direction

*2-96. Represent each cable force as a Cartesian vector.

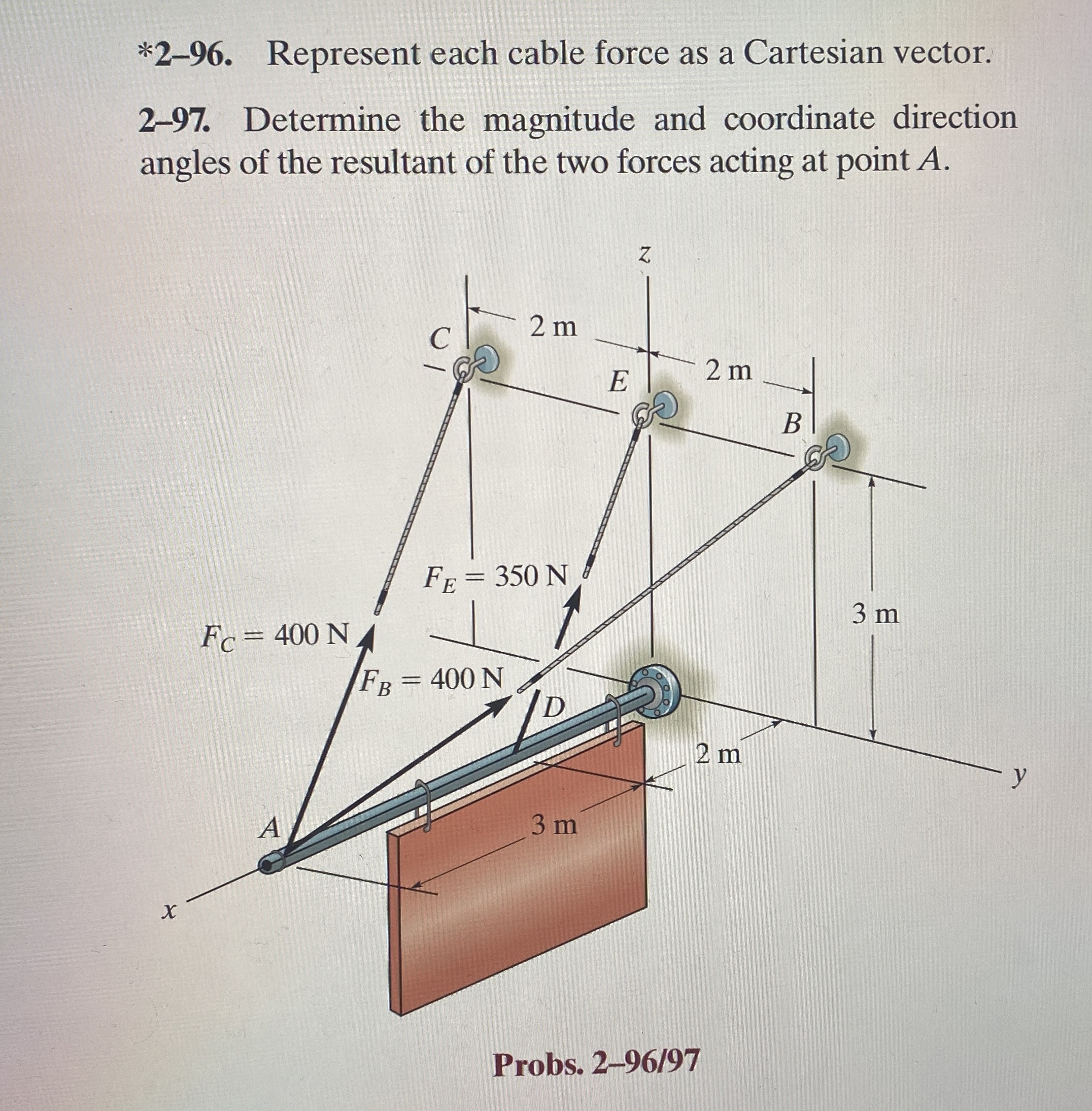

2-97. Determine the magnitude and coordinate direction angles of the resultant of the two forces acting at point A.
Probs. 2-96/97
* 2 - 9 6 . Represent each cable force as a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
