Question: 2. A 6 kN force is applied down on the end of the top horizontal member. The connection at C is a smooth slot.

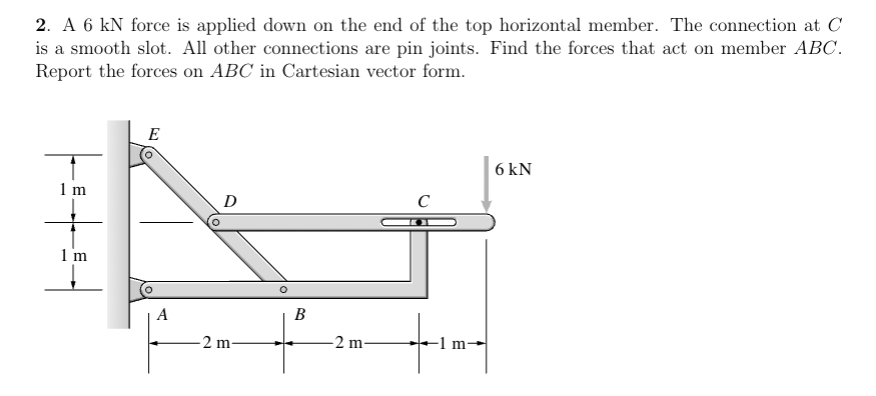

2. A 6 kN force is applied down on the end of the top horizontal member. The connection at C is a smooth slot. All other connections are pin joints. Find the forces that act on member ABC. Report the forces on ABC in Cartesian vector form. 1 m 1 m E D C A 2 m. B -1 m- 2 m 6kN
