Question: 2 . A dc machine ( 5 . 5 KW , 2 2 0 V , 1 5 0 0 rpm ) has Ra =

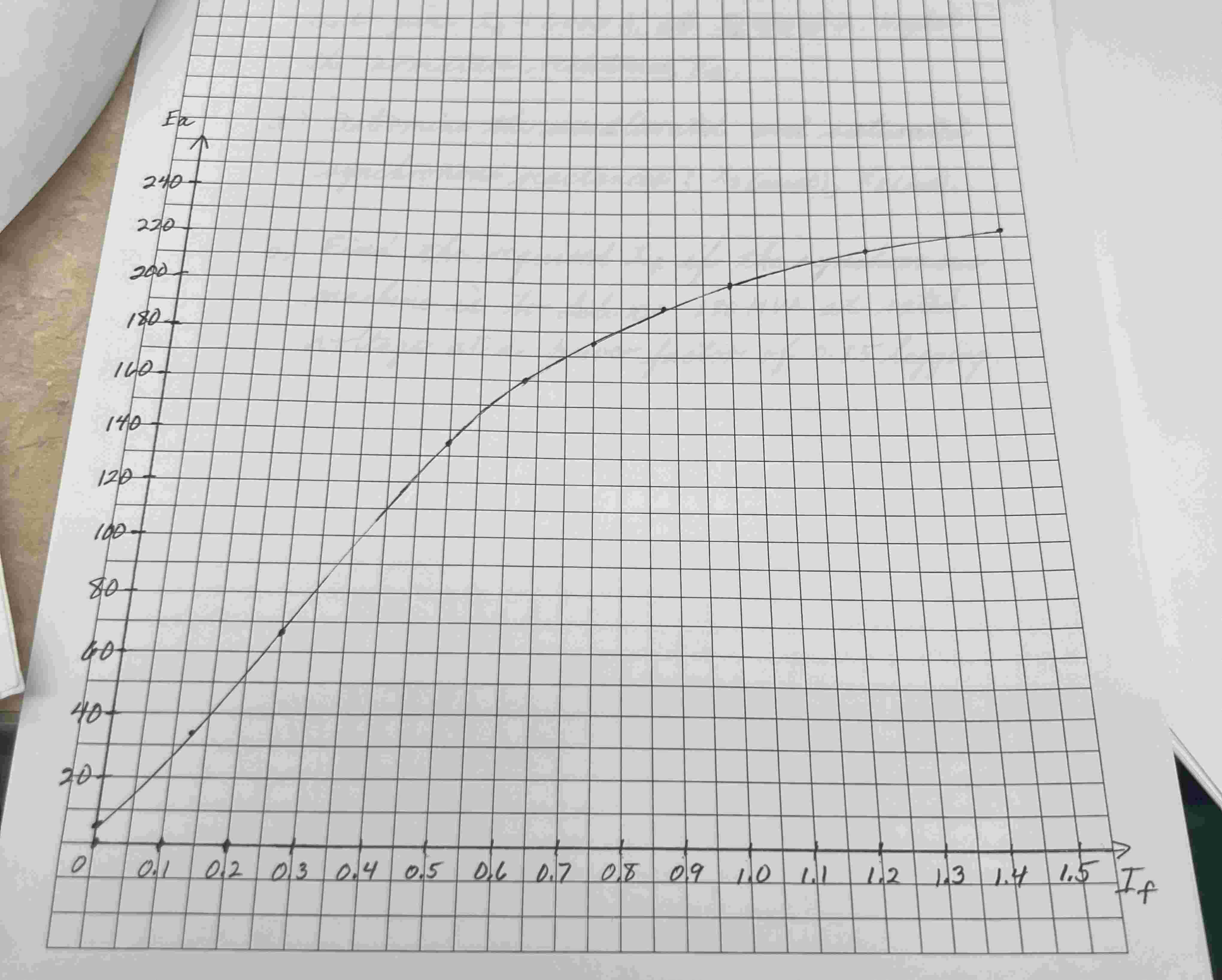

2. A dc machine (5.5KW,220V,1500rpm) has Ra =0.8 ohm and Rfw=160 ohm. The machine is driven at 1500 rpm and is self-excited. The field control resistance, Rfc, is adjusted to provide. a no-load terminal voltage of 200v. Determine the value of Rfc. Determine the terminal voltage at full load If(Ar)=0.05A. Use the attached magnetization curve.
2 . A dc machine ( 5 . 5 KW , 2 2 0 V , 1 5 0 0

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
