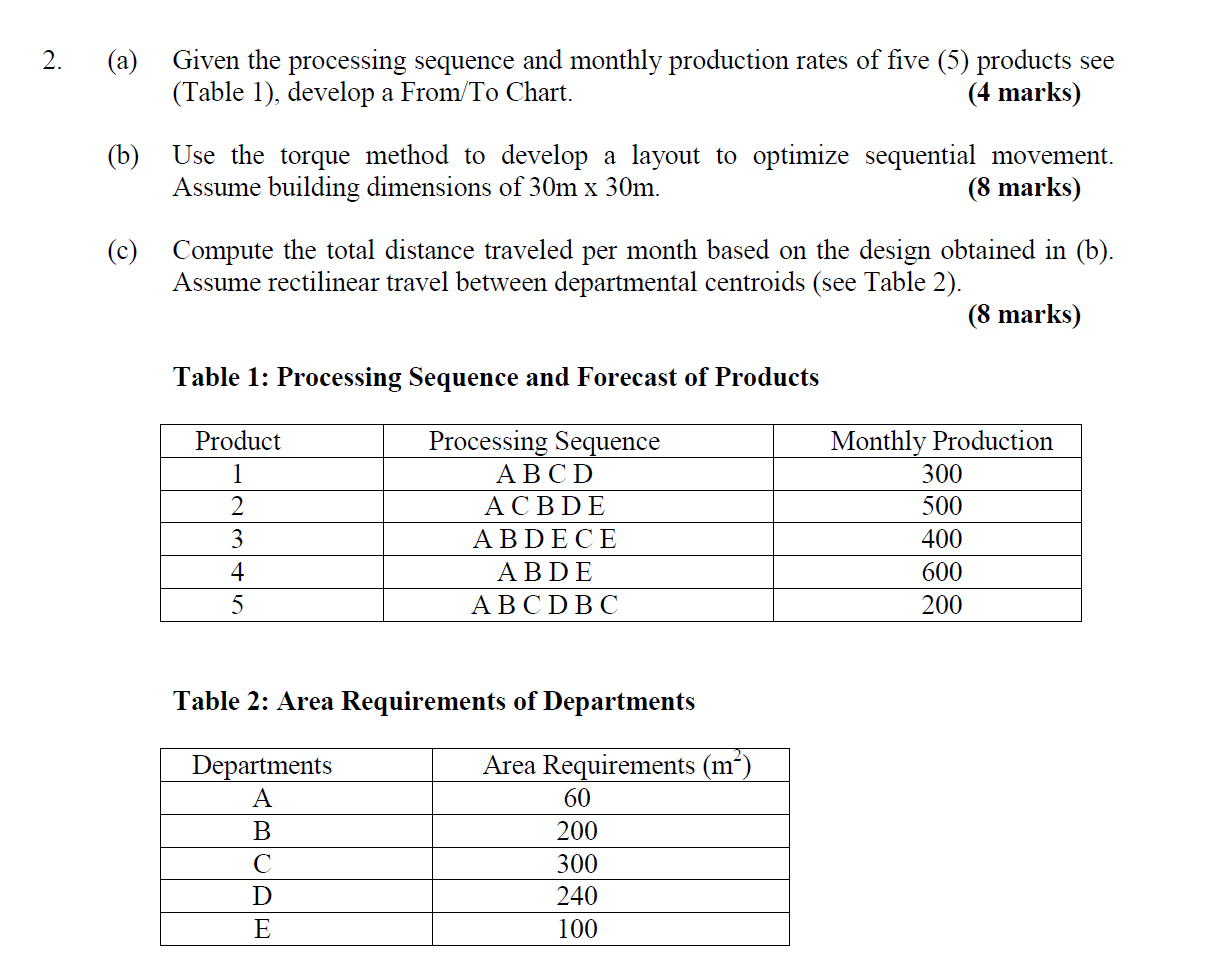

$2.($a$)$ Given the processing sequence and monthly production rates of five $(5)$ products see $($Table $1),$ develop a From$/$To Chart.

$(4$ marks$)$

$($b$)$ Use the torque method to develop a layout to optimize sequential movement. Assume building dimensions of $\backslash (30\backslash$mathrm$\{$~m$\}\backslash$times $30\backslash$mathrm$\{$~m$\}\backslash ).$

$(8$ marks$)$

$($c$)$ Compute the total distance traveled per month based on the design obtained in $($b$).$ Assume rectilinear travel between departmental centroids $($see Table $2).$

$(8$ marks$)$

Table $1$: Processing Sequence and Forecast of Products

Table $2$: Area Requirements of Departments
