Question: ( 2 ) A simple flow system to be used for steady - flow tests consists of a constant head tank connected to a length

(2)

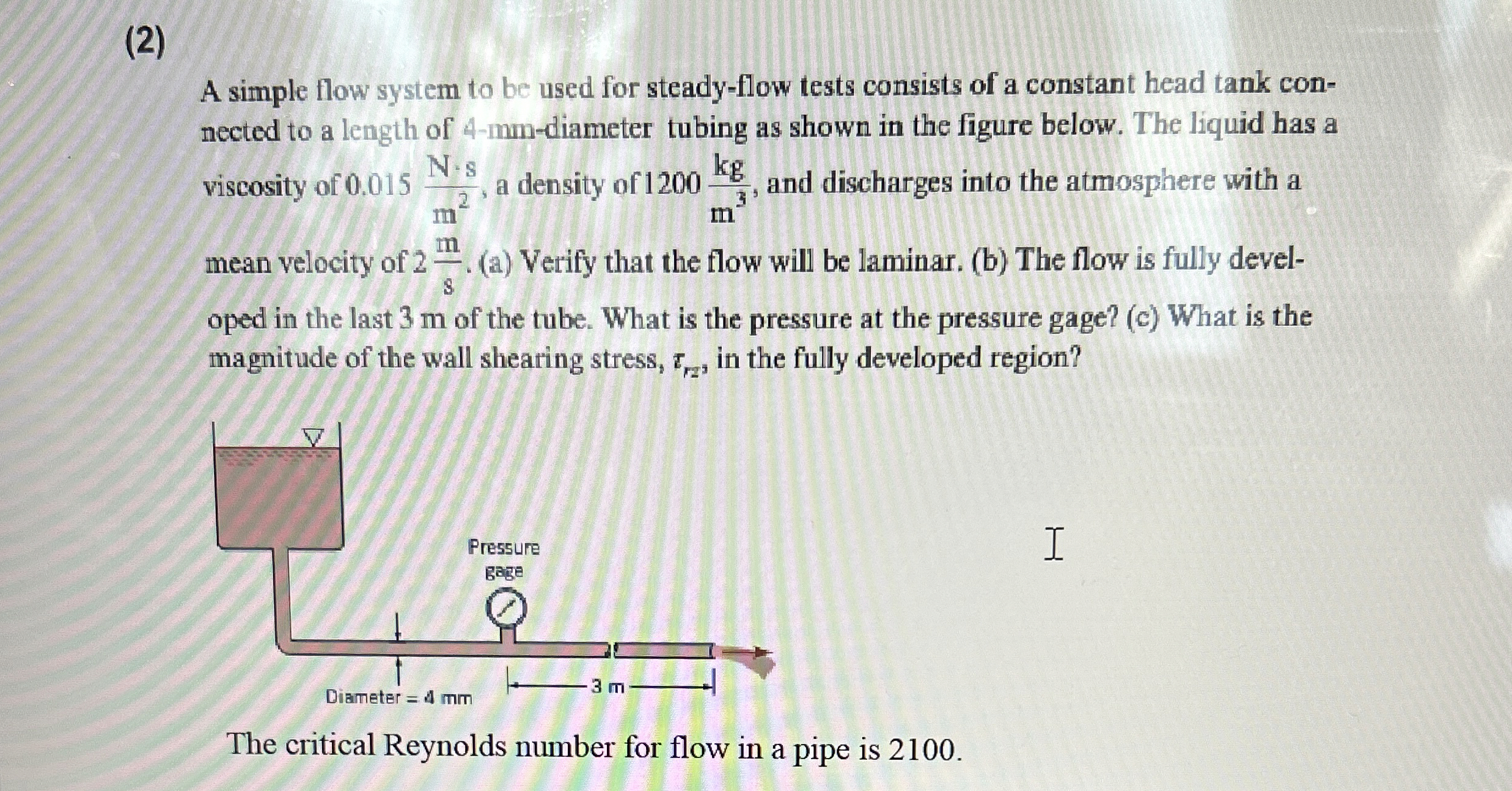

A simple flow system to be used for steady-flow tests consists of a constant head tank connected to a length of 4-mm-diameter tubing as shown in the figure below. The liquid has a viscosity of 0.015(N)*(s)m2, a density of 1200(kg)m3, and discharges into the atmosphere with a mean velocity of 2(m)(s).(a) Verify that the flow will be laminar. (b) The flow is fully developed in the last 3 m of the tube. What is the pressure at the pressure gage? (c) What is the magnitude of the wall shearing stress, rz, in the fully developed region?
the cinucal eynoias number for now in a pipe is 2100.
( 2 ) A simple flow system to be used for steady
