Question: 2 - a . What is the flow direction? b . What kind of machine is at A ? c . Do you think both

2-

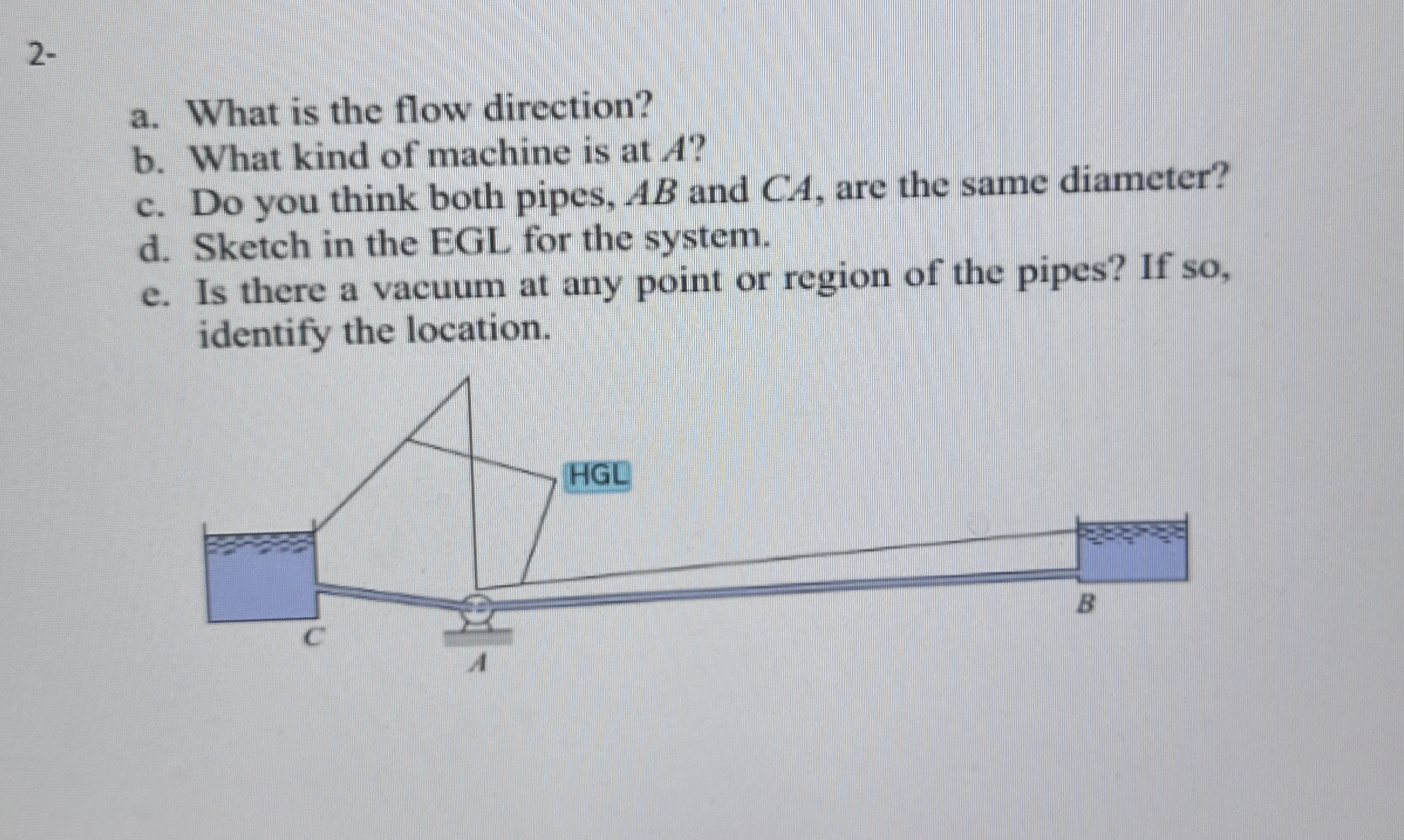

a. What is the flow direction?
b. What kind of machine is at A?
c. Do you think both pipes, AB and CA, are the same diameter?
d. Sketch in the EGL for the system.
e. Is there a vacuum at any point or region of the pipes? If so, identify the location.
2 - a . What is the flow direction? b . What kind

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
