Question: ? 2 ASSESSMENT PROBLEM Objective 2 - Be able to analyze simple circuits containing ideal op amps 5 . 4 Assume that the op amp

?2 ASSESSMENT PROBLEM
Objective 2-Be able to analyze simple circuits containing ideal op amps

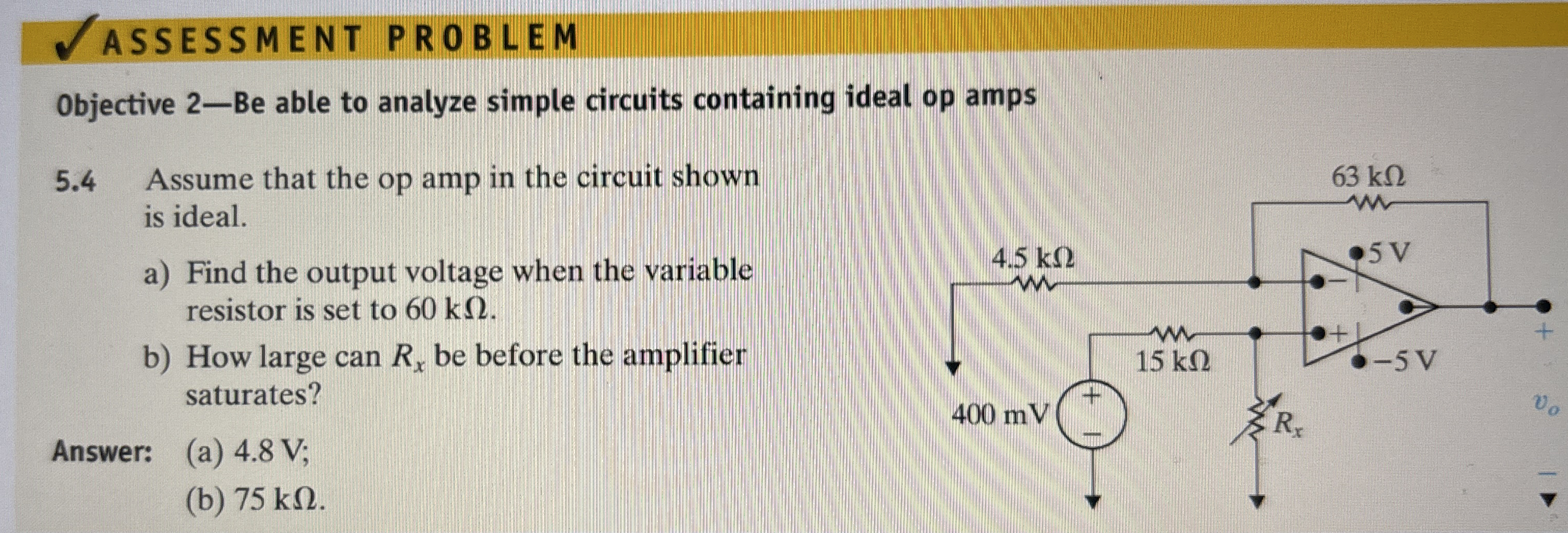

5.4 Assume that the op amp in the circuit shown is ideal.
a) Find the output voltage when the variable resistor is set to 60k.
b) How large can Rx be before the amplifier saturates?
Answer: (a)4.8 V ;
(b)75k.
? 2 ASSESSMENT PROBLEM Objective 2 - Be able to

Step by Step Solution
