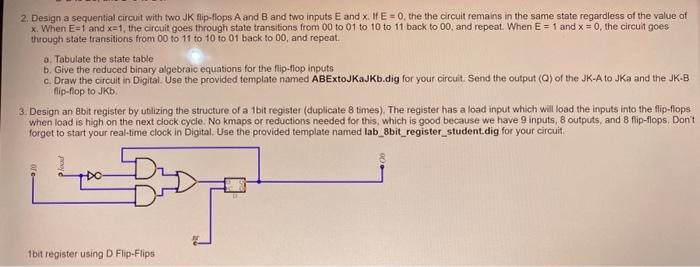

2. Design a sequential circuit with two JK flip-flops A and B and two inputs E and X. IE 0, the the circuit remains in the same state regardless of the value of x. When E= 1 and xa1, the circuit goes through state transitions from 00 to 01 to 10 to 11 back to 00, and repeat. When E= 1 and x = 0, the circuit goes through state transitions from 0 to 11 to 10 to 01 back to 00, and repeat. a. Tabulate the state table b. Give the reduced binary algebraic equations for the flip-flop inputs c.Draw the circuit in Digital. Use the provided template named ABExtOJKaJKb.dig for your circuit. Send the output () of the JK-Ato Jka and the JK-B flipflop to JKb 3. Design an Bit register by utilizing the structure of a bit register (duplicate 8 times). The register has a load input which will load the inputs into the flip-flops when load is high on the next clock cycle. No kmaps or reductions needed for this, which is good because we have 9 inputs, 8 outputs, and 8 flip-flops. Don't forget to start your real-time clock in Digital. Use the provided template named lab_8bit_register_student.dig for your circuit Du 1bit register using D Flip-Flips
