Question: 2 - Determine the force in members ( mathrm { DE } , mathrm { DC } ) , and EC

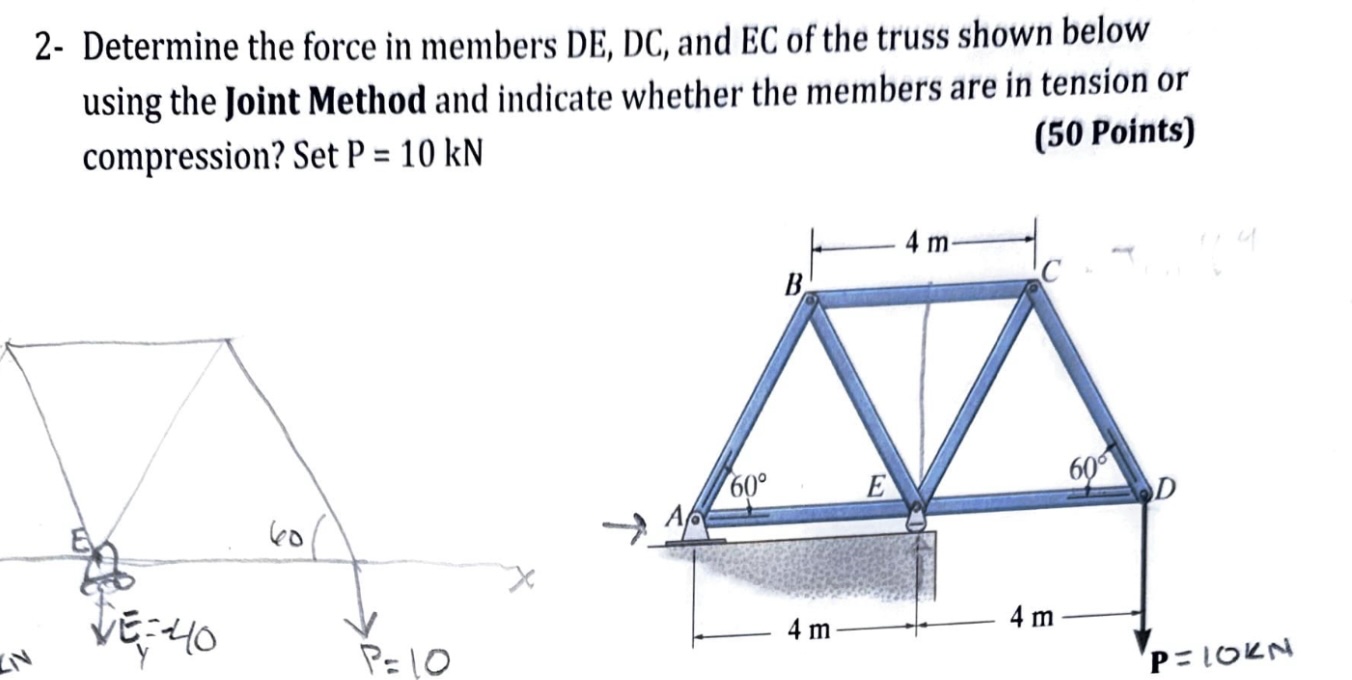

2- Determine the force in members \(\mathrm{DE},\mathrm{DC}\), and EC of the truss shown below using the Joint Method and indicate whether the members are in tension or compression? Set P =10 kN
(50 Points)
2 - Determine the force in members \ ( \ mathrm {

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
