Question: 2 Determine the minimum pipe diameter required to deliver a flow of 1 5 c f s in the system shown below. Draw the HGL

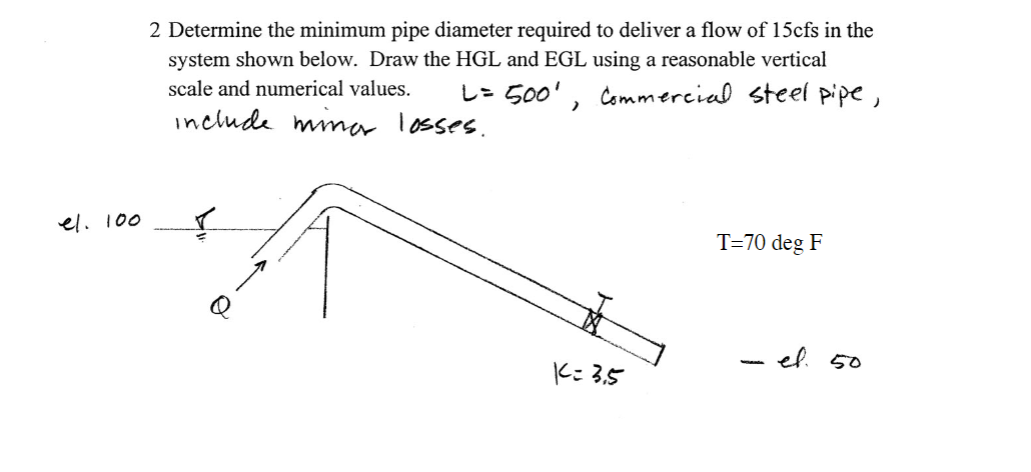

2 Determine the minimum pipe diameter required to deliver a flow of 15cfs in the
system shown below. Draw the HGL and EGL using a reasonable vertical
scale and numerical values. L=500', commercial steel pipe,
include miner losses.
el.100
T=70degF
k=3,5
el.50
2 Determine the minimum pipe diameter required to

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
