Question: 2. EARLY START Gantt chart for a project is shown. The resources (H of laborers) needed to complete each activity is shown next to each

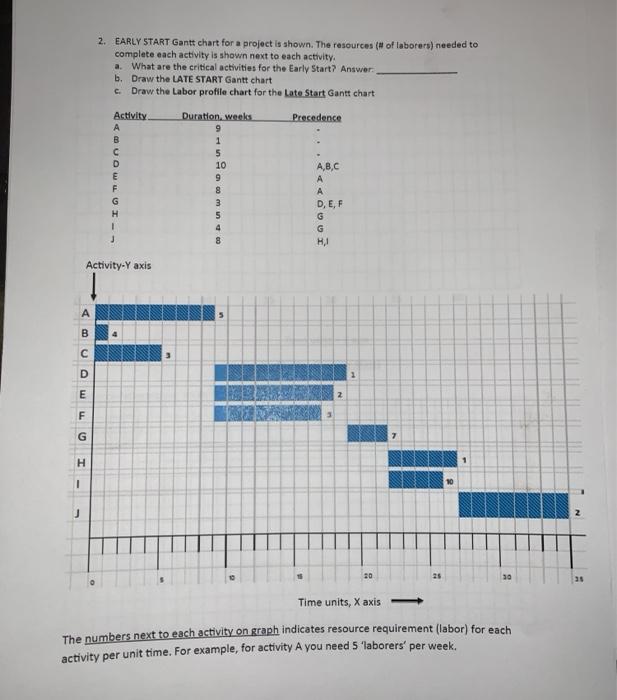

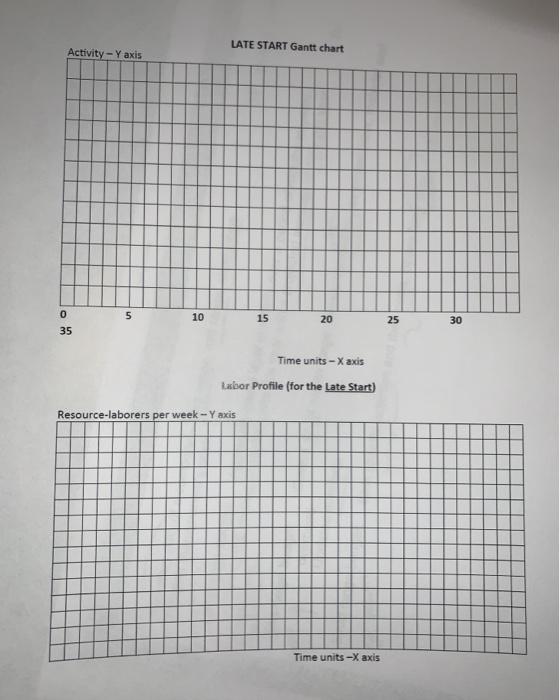

2. EARLY START Gantt chart for a project is shown. The resources (H of laborers) needed to complete each activity is shown next to each activity, a. What are the critical activities for the Early Start? Answer b. Draw the LATE START Gantt chart c. Draw the Labor profile chart for the Late Start Gantt chart Precedence Activity B D E Duration, weeks 9 1 5 10 UOUI 8 3 5 4 8 A,B,C A A D,E,F G G Activity-Yaxis A B D 1 2 G H I 20 25 Time units, X axis The numbers next to each activity on graph indicates resource requirement (labor) for each activity per unit time. For example, for activity A you need s 'laborers' per week. LATE START Gantt chart Activity-Yaxis 5 10 0 35 15 20 25 30 Time units-X axis Labor Profile (for the Late Start) Resource-laborers per week - Yaxis Time units -X axis

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
