2. Electric Circuits (10th Edition): Redo Problem 9.31 + use SPICE simulation to check results. Print...
Fantastic news! We've Found the answer you've been seeking!
Question:
Transcribed Image Text:

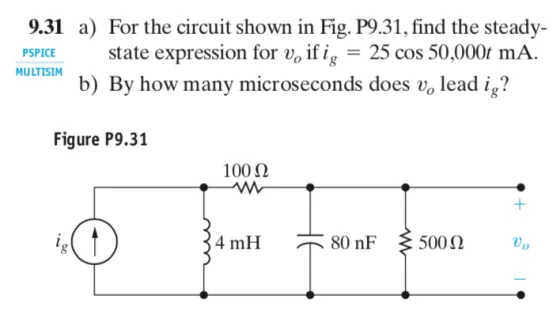

2. Electric Circuits (10th Edition): Redo Problem 9.31 + use SPICE simulation to check results. Print circuit schematic and results. Analyze and compare your calculated and SPICE results. Are they consistent? Why or why not? 9.31 a) For the circuit shown in Fig. P9.31, find the steady- state expression for v, if i̟ = 25 cos 50,000t mA. PSPICE MULTISIM b) By how many microseconds does v, lead i? Figure P9.31 100 N 4 mH 80 nF 500N Vo 2. Electric Circuits (10th Edition): Redo Problem 9.31 + use SPICE simulation to check results. Print circuit schematic and results. Analyze and compare your calculated and SPICE results. Are they consistent? Why or why not? 9.31 a) For the circuit shown in Fig. P9.31, find the steady- state expression for v, if i̟ = 25 cos 50,000t mA. PSPICE MULTISIM b) By how many microseconds does v, lead i? Figure P9.31 100 N 4 mH 80 nF 500N Vo
