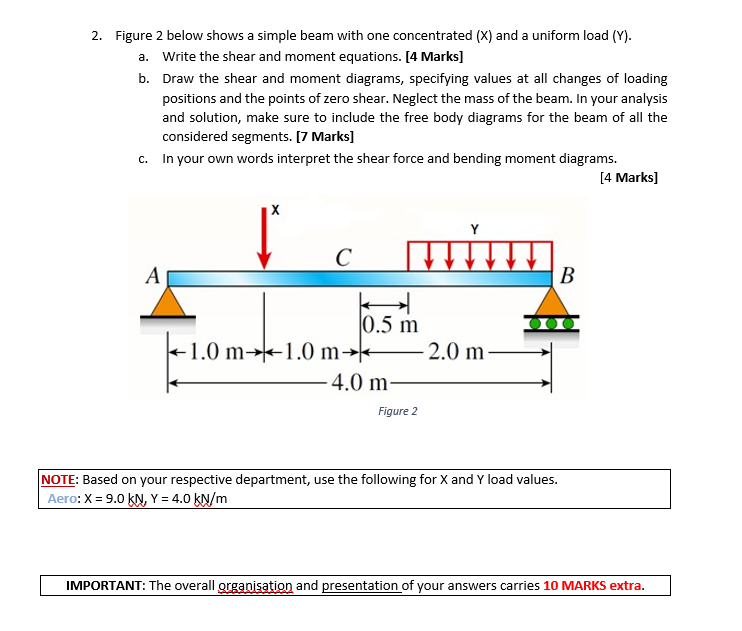

Question: 2. Figure 2 below shows a simple beam with one concentrated [X] and a uniform load {Y}. a. Write the shear and moment equations. [4

2. Figure 2 below shows a simple beam with one concentrated [X] and a uniform load {Y}. a. Write the shear and moment equations. [4 Marks] b. Draw the shear and moment diagrams, specifying values at all changes of loading positions and the points of zero shear. Neglect the mass ofthe beam. In your analysis and solution, make sure to include the free body diagrams for the beam of all the considered segments. [1' Marks] :3. In your own words interpret the shear force and bending moment diagrams. [4 Marks] 1.0m 1.0111 2.0111 4.0m Hgm'ez NOTE: Based on your respective department, use the following for X and Y load values. Aero: X: 9.0 [5% 'I" = 4.0 Wm IMPORTANT: The overall Wand presentation of your answers carrier. 10 MARKS extra

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!
