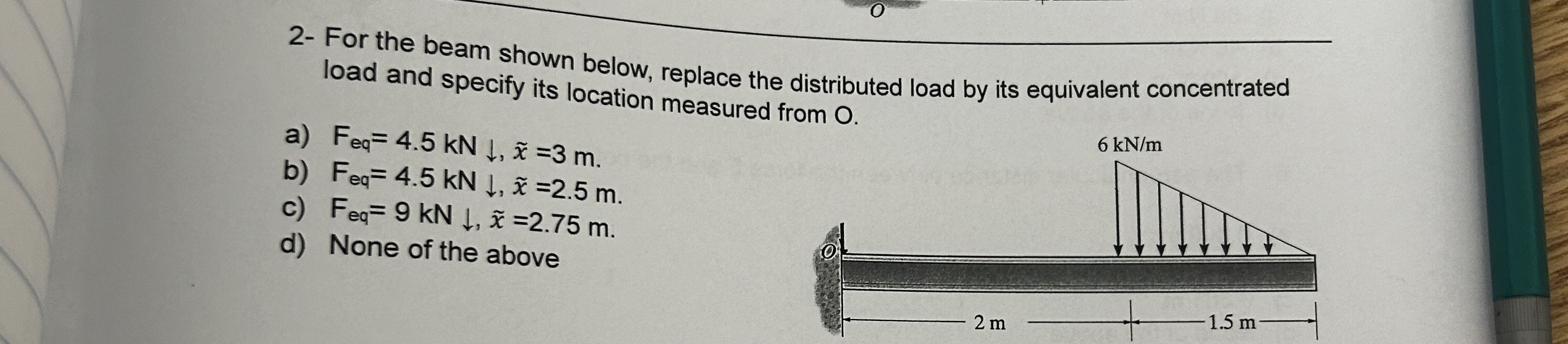

Question: 2 - For the beam shown below, replace the distributed load by its equivalent concentrated load and specify its location measured from O . a

2- For the beam shown below, replace the distributed load by its equivalent concentrated load and specify its location measured from O.
a)Feq=4.5kNdarr,tilde(x)=3m.
b)Feq=4.5kNdarr,tilde(x)=2.5m.
c)Feq=9kNdarr,tilde(x)=2.75m.
d) None of the above
2 - For the beam shown below, replace the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
