Question: 2- Given 128x16 ROM chips with an enable input. a- How many chips are needed to get 512x16 ROM. b- How many chips are needed

2- Given 128x16 ROM chips with an enable input. a- How many chips are needed to get 512x16 ROM. b- How many chips

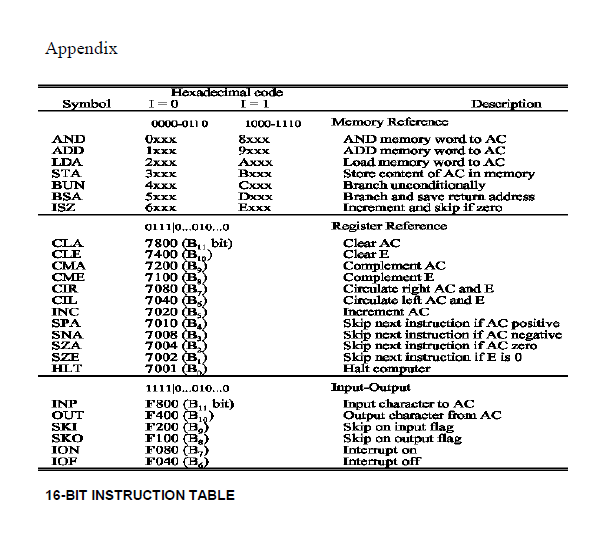

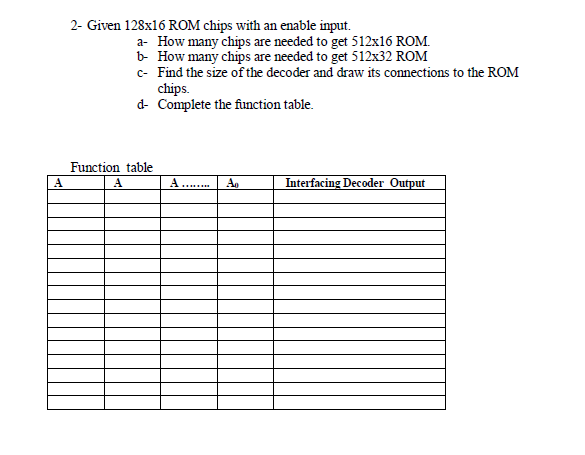

2- Given 128x16 ROM chips with an enable input. a- How many chips are needed to get 512x16 ROM. b- How many chips are needed to get 512x32 ROM c- Find the size ofthe decoder and draw its connections to the ROM chips. d- Complete the function table. Function table IA A......... Interfacing Decoder Output

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Given 128x16 ROM chips with an enable input. a- How many chips are needed to get 512x16 ROM. b- How many chips are needed to get 512x32 ROM. c- Find the size of the decoder and draw its connections...
