Question: 2. Given the below experiment data, obtain the following: (a) Draw the Impact Energy Vs Temperature graph and determine the ductile-brittle transition temperature (DBTT) (b)

2. Given the below experiment data, obtain the following: (a) Draw

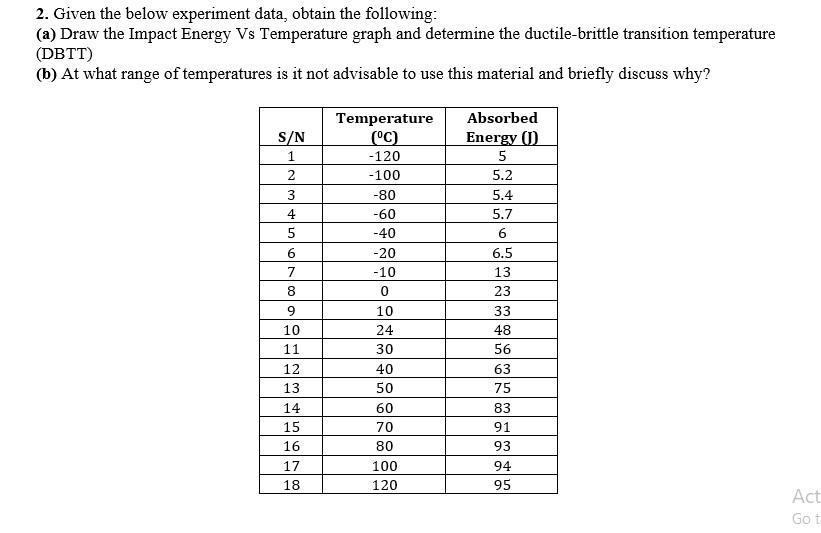

2. Given the below experiment data, obtain the following: (a) Draw the Impact Energy Vs Temperature graph and determine the ductile-brittle transition temperature (DBTT) (b) At what range of temperatures is it not advisable to use this material and briefly discuss why? S/N 1 2 3 Temperature (C) -120 -100 -80 -60 -40 -20 -10 0 Absorbed Energy (1) 5 5.2 5.4 5.7 6 6.5 13 23 33 10 24 48 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 30 40 50 60 70 80 100 120 56 63 75 83 91 93 94 95 Ac Got
