Question: 2. Referring to Fig. 6, develop a formula that will give the voltage gain, VoVi in terms of Ri and the feedback resistance, Rt. Assume

2. Referring to Fig. 6, develop a formula that will give

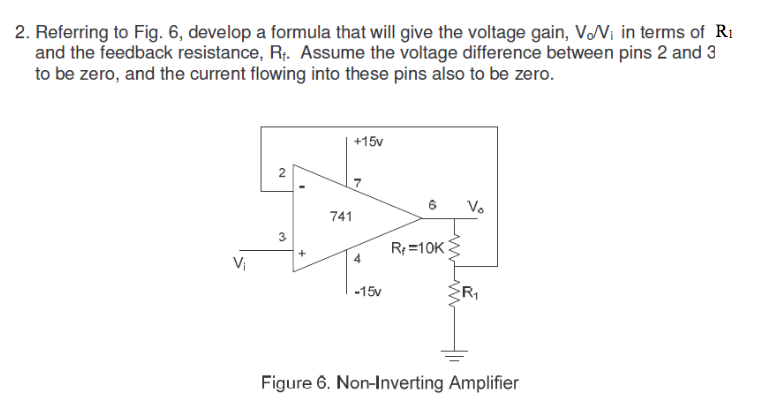

2. Referring to Fig. 6, develop a formula that will give the voltage gain, VoVi in terms of Ri and the feedback resistance, Rt. Assume the voltage difference between pins 2 and 3 to be zero, and the current flowing into these pins also to be zero. +15v 6 Vo 741 3 R 10K Vi -15v R1 Figure 6. Non-Inverting Amplifier

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
