Question: 2. The Boolean function realized by the logic circuit shown is: D 1 F(A,B,C,D 4x1 MUX Y I, So si a. m(2,3,5,7,8,9,12) b. m(2,3,5,7,8,12,13) c.

2. The Boolean function realized by the logic circuit shown is:

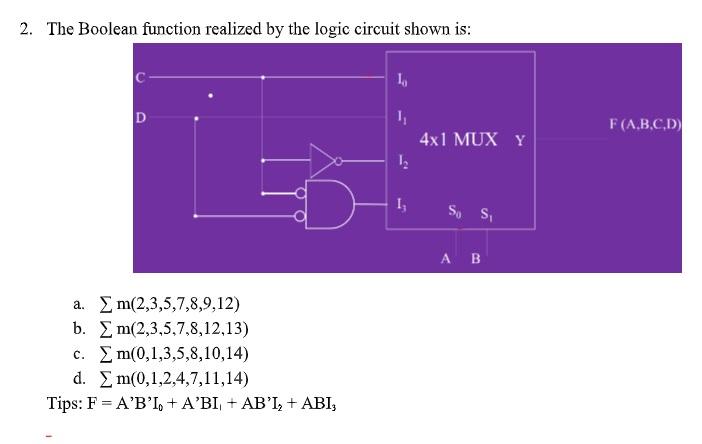

2. The Boolean function realized by the logic circuit shown is: D 1 F(A,B,C,D 4x1 MUX Y I, So si a. m(2,3,5,7,8,9,12) b. m(2,3,5,7,8,12,13) c. m(0,1,3,5,8,10,14) d. m(0,1,2,4,7,11,14) Tips: F = A'B'Io + A'BI, + AB'I, + ABI

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
