Question: ( 2 ) Two forces act on an L - bar, as shown above. Find ( a ) the reactions at A and B (

(2)

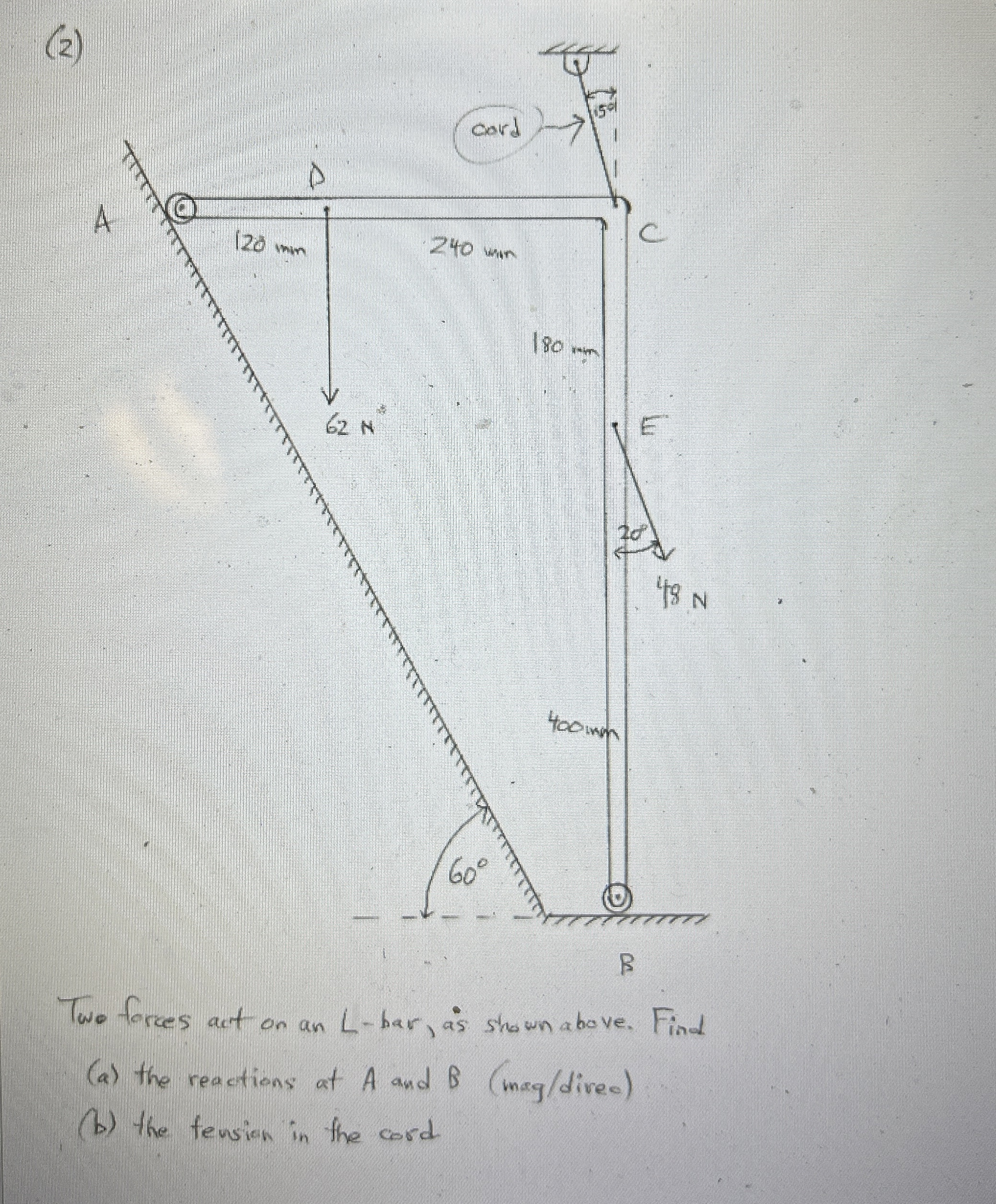

Two forces act on an L-bar, as shown above. Find
(a) the reactions at A and B(Mag/direc)
(b) the tension in the cord
( 2 ) Two forces act on an L - bar, as shown

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
