Question: (20 points) A project is considered completed when activities A-F have all been completed. The precedence relationships and duration of each activity are given in

(20 points) A project is considered completed

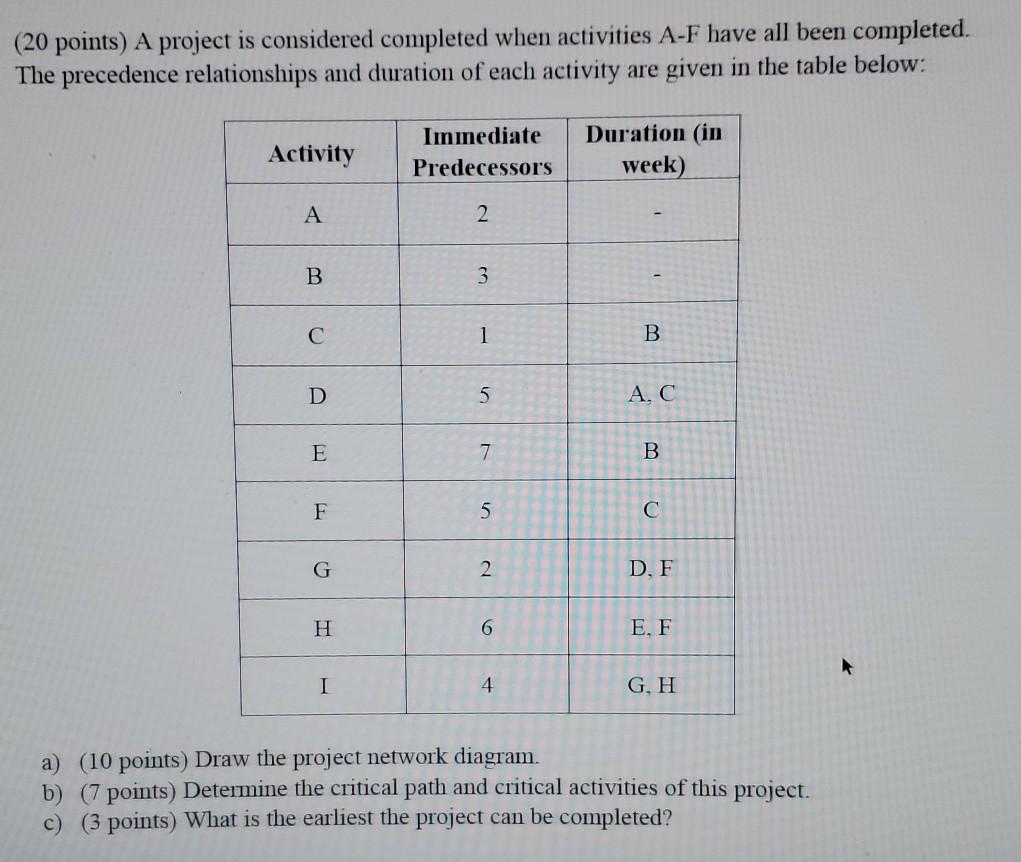

(20 points) A project is considered completed when activities A-F have all been completed. The precedence relationships and duration of each activity are given in the table below: Activity Immediate Predecessors Duration in week) A 2 B 3 1 B D 5 AC E 7. B F 5 C G D. F N H 6 EF I 4 G H a) (10 points) Draw the project network diagram. b) (7 points) Determine the critical path and critical activities of this project. c) (3 points) What is the earliest the project can be completed

Step by Step Solution

There are 3 Steps involved in it
