Question: 20 pts 1. (a) Simplify the following function, which is given as a Karmnaugh map, in SoP (Sum of Products) form: yz wx 00 01

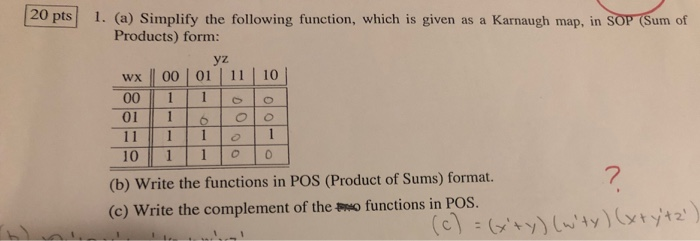

20 pts 1. (a) Simplify the following function, which is given as a Karmnaugh map, in SoP (Sum of Products) form: yz wx 00 01 | 11 | 10 10 11 O o (b) Write the functions in POS (Product of Sums) format. (c) Write the complement of the wwo functions in POS. 7

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

show work 1. (a) Simplify the following function, which is given as a Karnaugh map, in SOP (Sum of Products) form: yz wx 00 01 11 10 00 1 01 1 10 1 1 (b) Write the functions in POS (Product of Sums)...

1. (a) Simplify the following function, which is given as a Karnaugh map, in SOP (Sum of Products) form: yz wx 00 01 11 10 00 1 01 1 10 1 1 (b) Write the functions in POS (Product of Sums) format....

For the Karnaugh map below, 1. write the SOP standard form of function F(x,y,w,z) 2. draw the truth table of function F(x,y,w,z) 3. write the simplified expression of function F(x,y,w,z) 4. draw the...

A. Use a Karnaugh map to: 1. Derive the SOP and POS of the OUTPUT from the given table below, and type the answers in each provided cell: 2. Arrange the OUTPUT from the truth table in the ARRAY...

SECR1013/SCSR1013 2019/2020 - 1 PART A: OBJECTIVE [15 MARKS 1. If Boolean expression X = ABE + AB, how many variables are there? A. 2 B DS 2. Which of the expression below expresses the distributive...

Fr=(0,3,5,6,8,9,12,13) CD AB 00 01 11 10 mo 00 m3 m2 m4 ms m; m6 01 B 11 m 13 OBJECTIVE: To practice using K-maps to generate functions and their SOP implementations. INSTRUCTIONS: Perform the lab...
