Question: 2.1 and 2.2 please A traction device applies a force F to the head of a girl at an unknown O angle 0, as shown

2.1 and 2.2 please

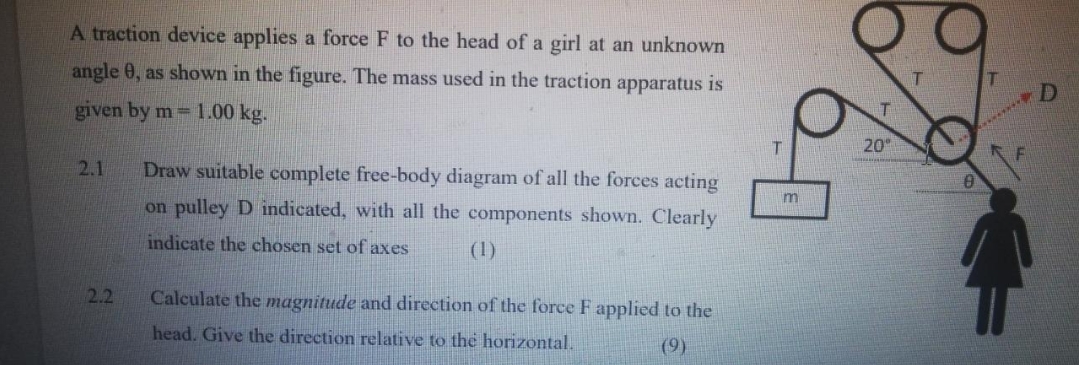

A traction device applies a force F to the head of a girl at an unknown O angle 0, as shown in the figure. The mass used in the traction apparatus is T D T given by m - 1.00 kg. T 20 2.1 Draw suitable complete free-body diagram of all the forces acting m on pulley D indicated, with all the components shown. Clearly indicate the chosen set of axes (1) 2.2 Calculate the magnitude and direction of the force F applied to the head. Give the direction relative to the horizontal 19

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
