Question: 24. The switch has been in position a for a long time. At t = 0, the switch instantaneously moves to position b. Find

24. The switch has been in position a for a long time.

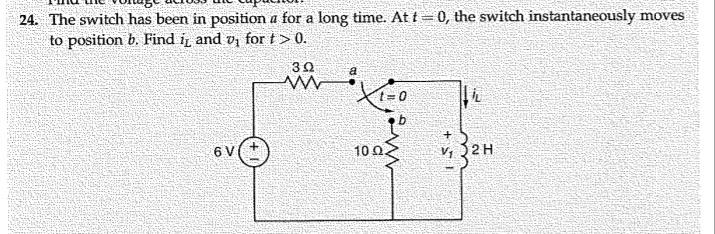

24. The switch has been in position a for a long time. At t = 0, the switch instantaneously moves to position b. Find i and vy fort> 0. 6 10. V, )2H + SI

Step by Step Solution

★★★★★

3.41 Rating (154 Votes )

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

To solve for iL and v1 for t 0 we need to analyze the circuit behavior both before and after the swi... View full answer
