Question: (2.5 marks A17 Write down a bit pattern to apply to inputs in order to transfer the Data in' source to the 'Data out destination

(2.5 marks A17 Write down a bit pattern to apply to

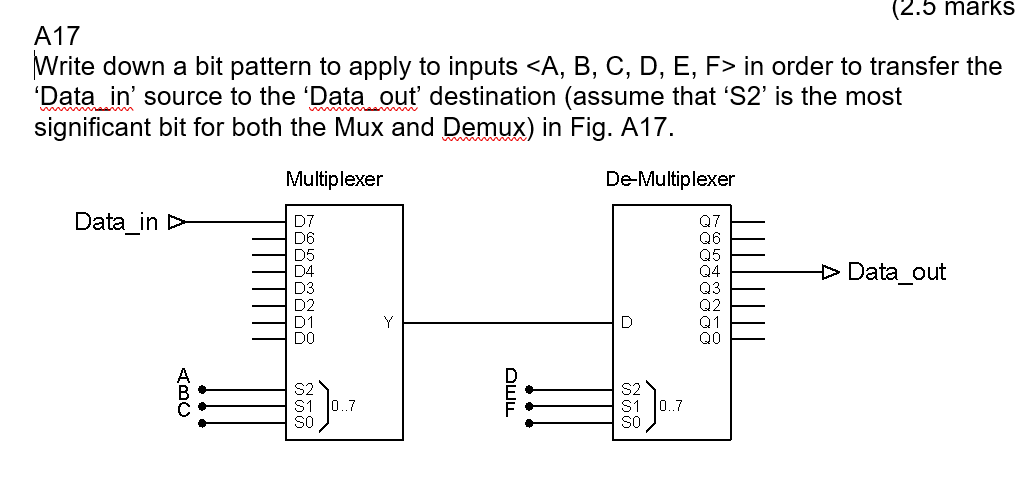

(2.5 marks A17 Write down a bit pattern to apply to inputs in order to transfer the Data in' source to the 'Data out destination (assume that 'S2' is the most significant bit for both the Mux and Demux) in Fig. A17. Multiplexer De Multiplexer Data_in Q7 Q6 Q5 Q4 D7 D6 D5 14 D3 D2 D1 DO Data_out D Q2 Q1 QO cm S2 % 10..7 SO 0..7 SO

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
