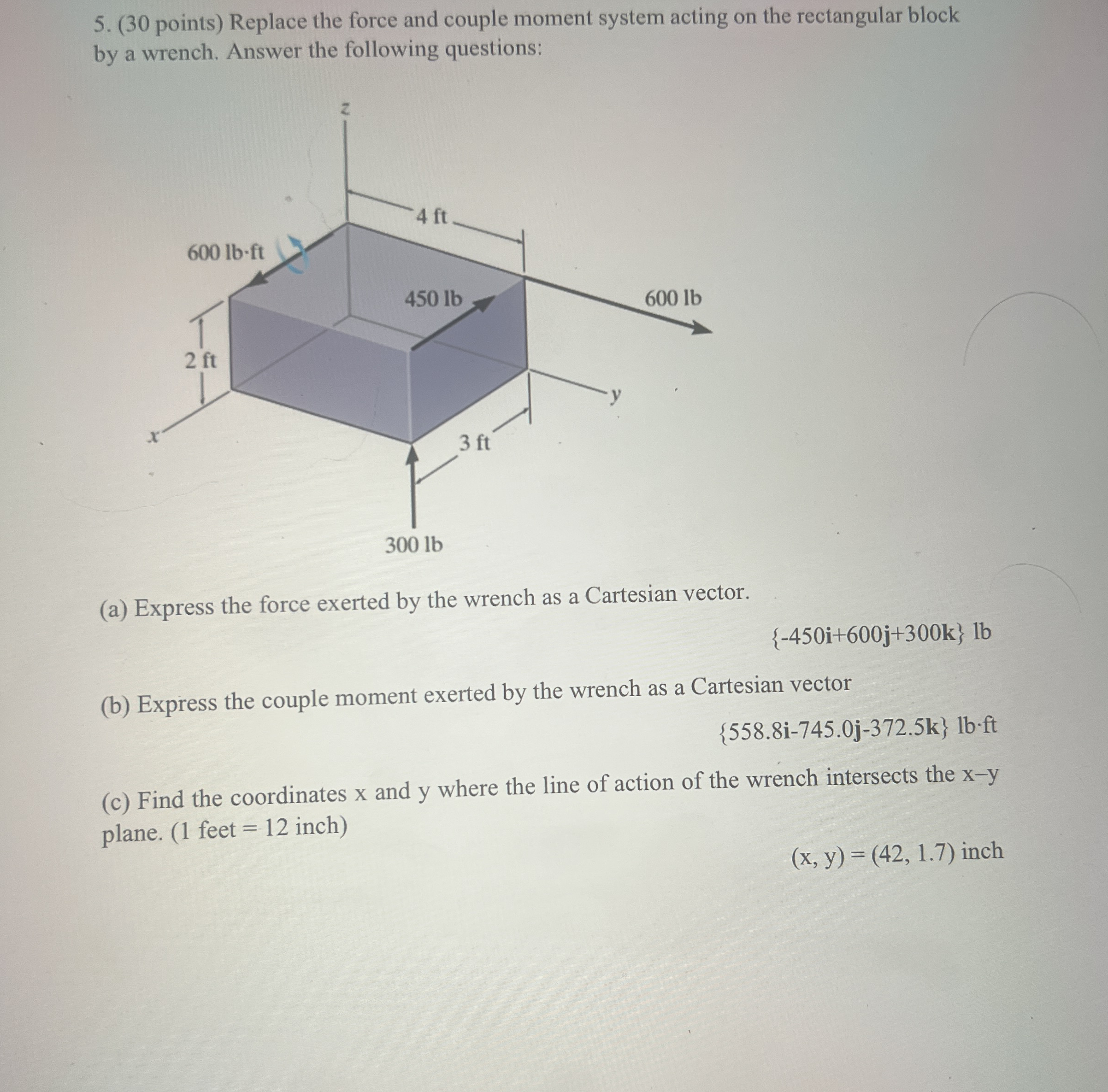

Question: ( 3 0 points ) Replace the force and couple moment system acting on the rectangular block by a wrench. Answer the following questions: (

(30 points) Replace the force and couple moment system acting on the rectangular block by a wrench. Answer the following questions:
(a) Express the force exerted by the wrench as a Cartesian vector.
{-450i+600j+300k}lb
(b) Express the couple moment exerted by the wrench as a Cartesian vector
{558.8i-745.0j-372.5k}lb*ft
(c) Find the coordinates x and y where the line of action of the wrench intersects the x-y plane. feet =12 inch
( 3 0 points ) Replace the force and couple
