Question: ( 3 0 % ) Problem 4 ( Pro 8 . 2 4 Textbook modified ) : Design SB 1 assuming A 3 6 steel.

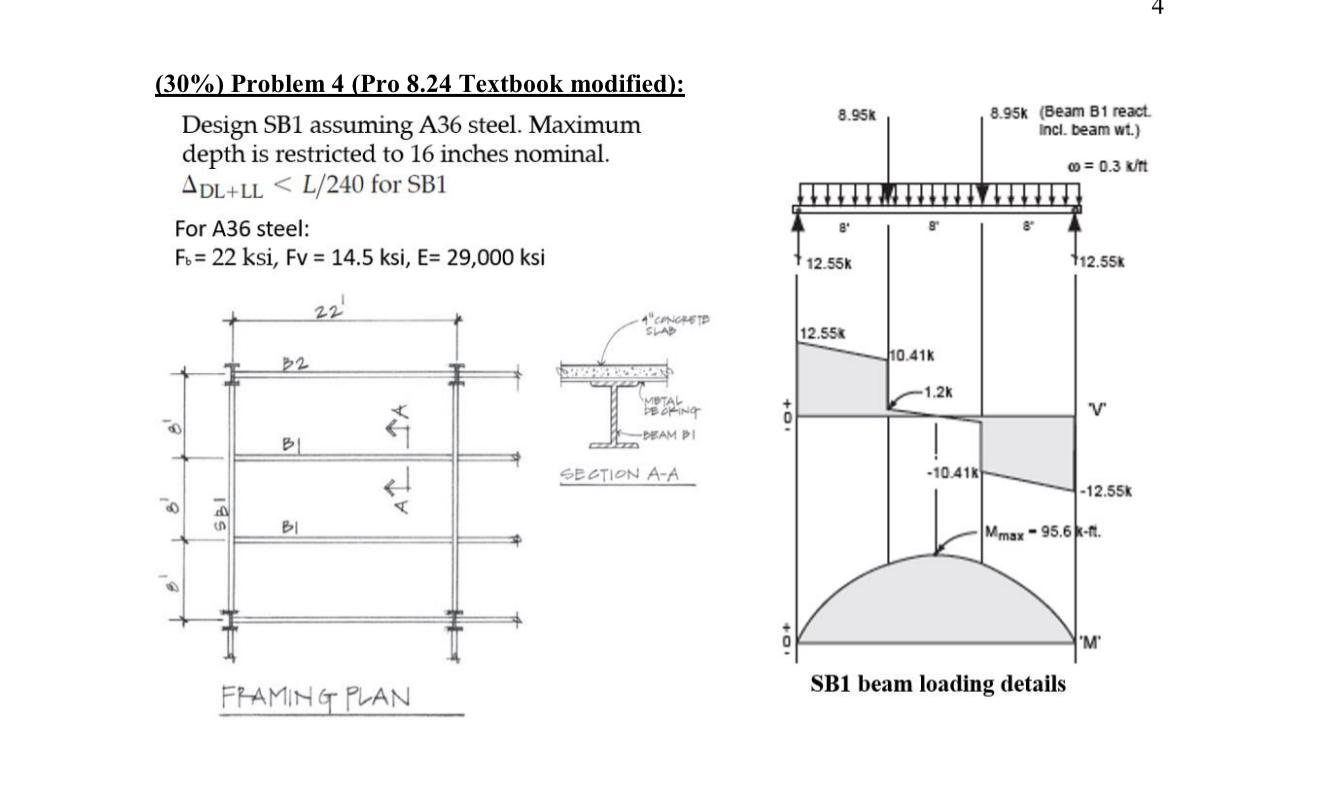

(30%) Problem 4(Pro 8.24 Textbook modified):
Design SB1 assuming A36 steel. Maximum
depth is restricted to 16 inches nominal.
Fb=22ksi,Fv=14.5ksi,E=29,000ksiDL+LL for SB1
For A36 steel:
Fb=22ksi,Fv=14.5ksi,E=29,000ksi
( 3 0 % ) Problem 4 ( Pro 8 . 2 4 Textbook

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
