Question: ( 3 0 pts ) Determine the shear center location for the cross section below for dimensions: t = 0 . 0 5 0 inches,

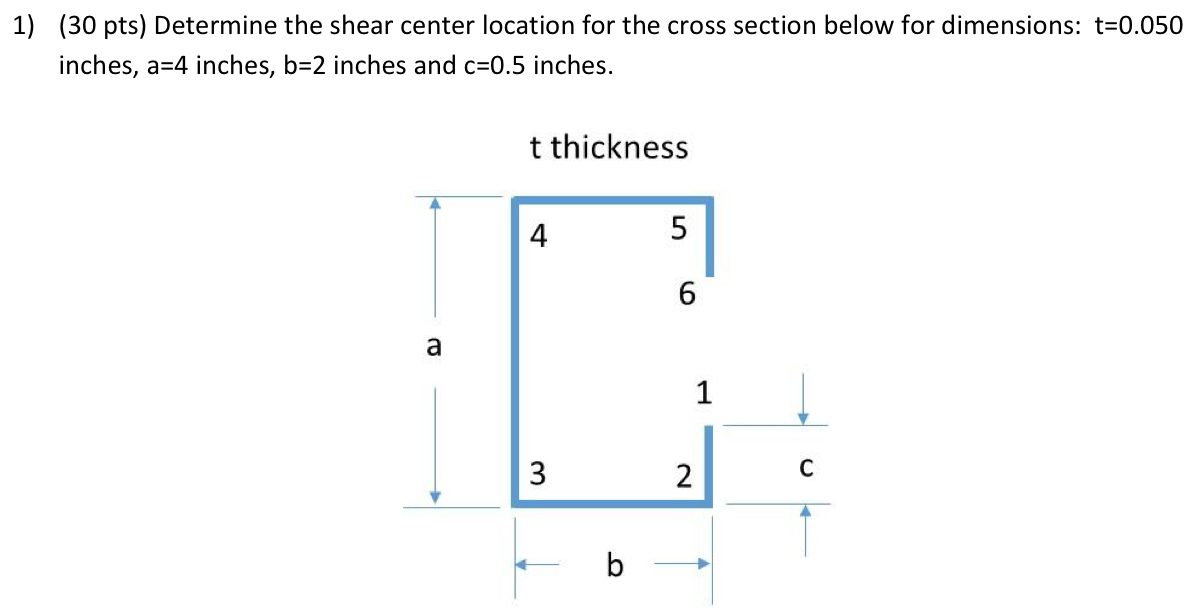

(30 pts) Determine the shear center location for the cross section below for dimensions: t=0.050
inches, a=4 inches, b=2 inches and c=0.5 inches.
( 3 0 pts ) Determine the shear center location

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
