Question: 3 - 1 4 . Determine the force in each member of the truss. Indicate if the members are in tension or compression. Assume all

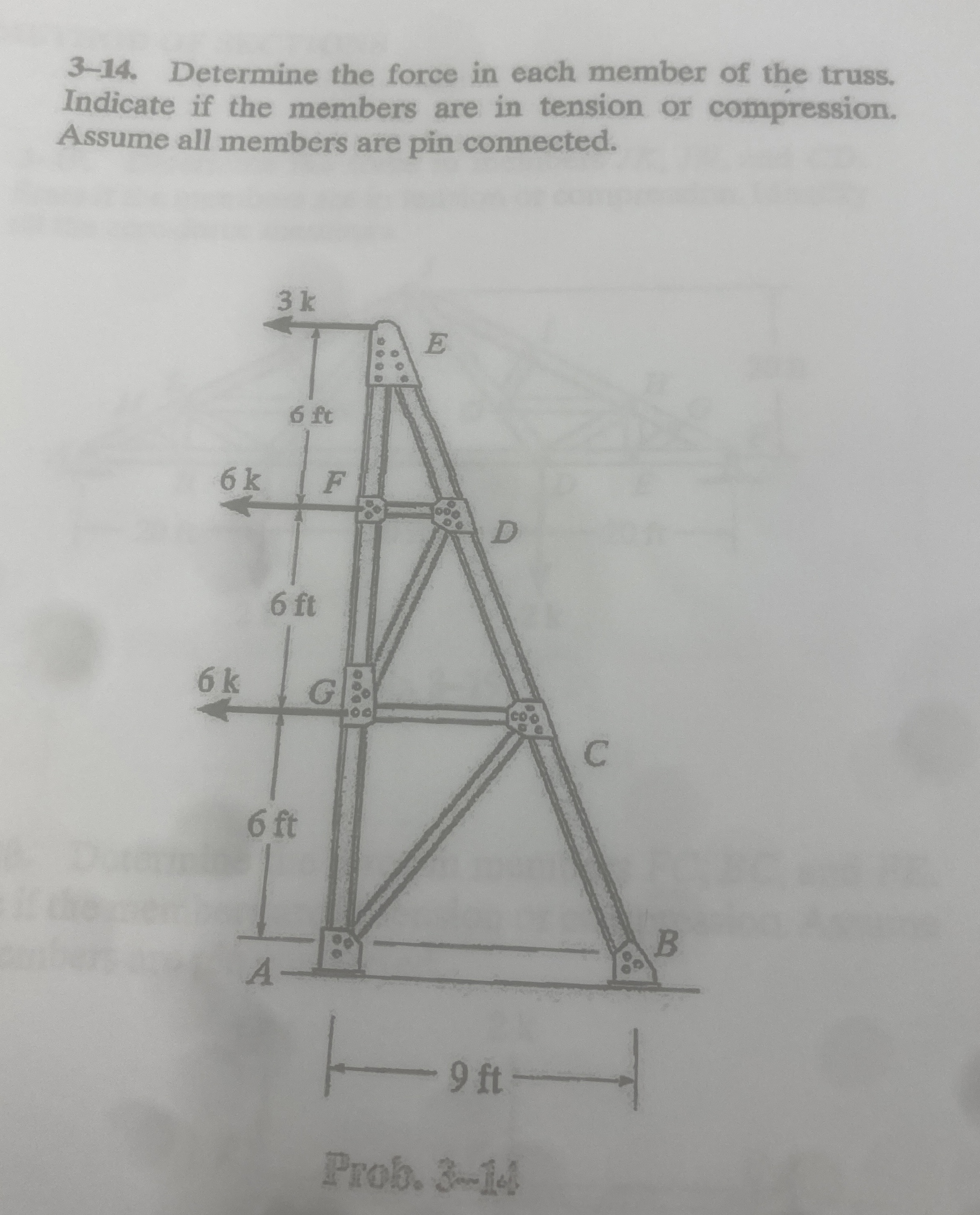

3-14. Determine the force in each member of the truss.
Indicate if the members are in tension or compression.
Assume all members are pin conmected.
Prols. 3 m 116
3 - 1 4 . Determine the force in each member of

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
