Question: 3 1 9 TOLERANCES AND FITS SELECTED PROBLEMS Problem 6 . 1 The pin and the hole into which it fits have a nominal diameter

319 TOLERANCES AND FITS
SELECTED PROBLEMS

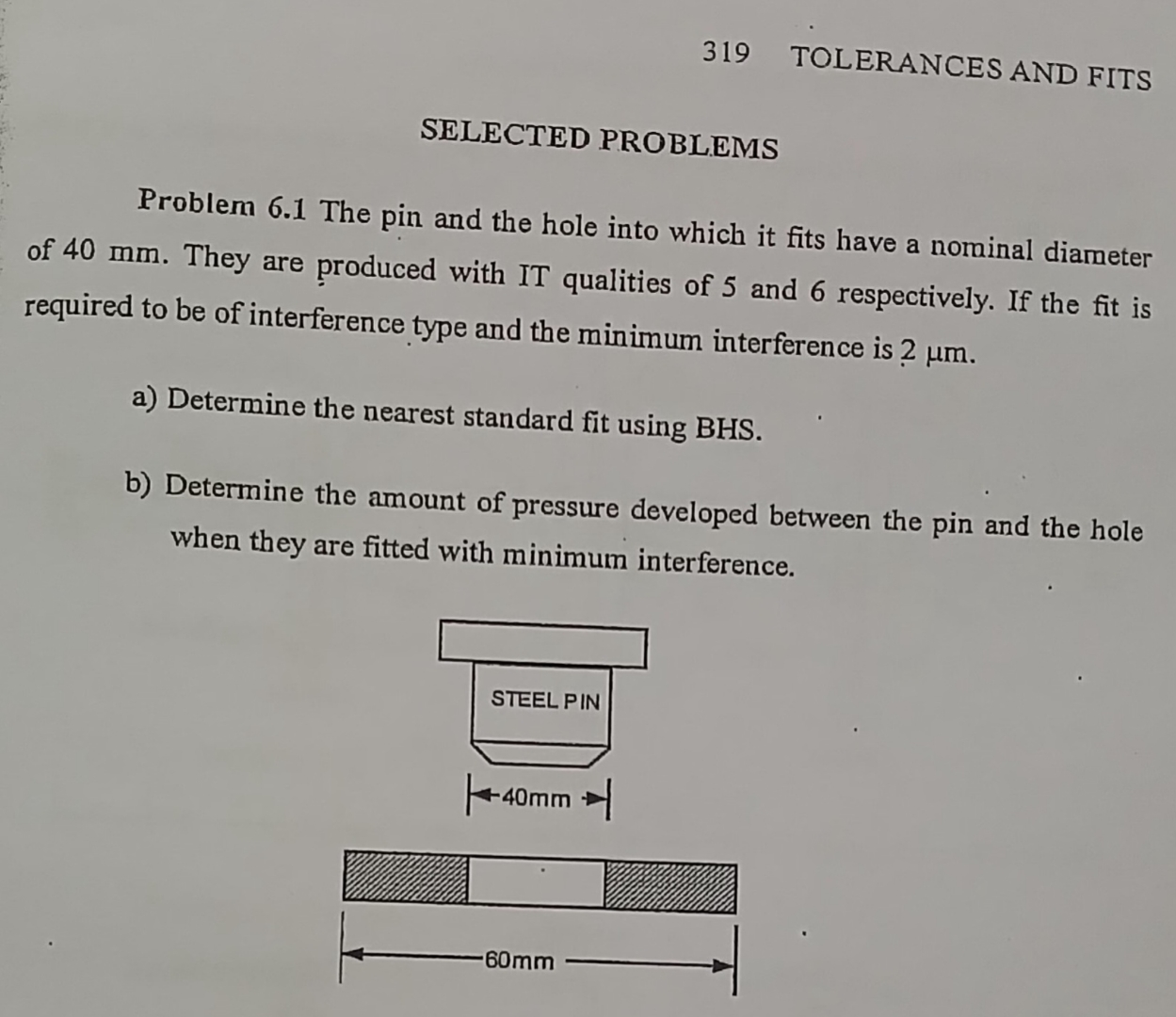

Problem 6.1 The pin and the hole into which it fits have a nominal diameter of 40 mm . They are produced with IT qualities of 5 and 6 respectively. If the fit is required to be of interference type and the minimum interference is 2m.
a) Determine the nearest standard fit using BHS.
b) Determine the amount of pressure developed between the pin and the hole when they are fitted with minimum interference.
