Question: * * 3 - 2 0 . Determine the force in members A B , B G , G F , and B F of

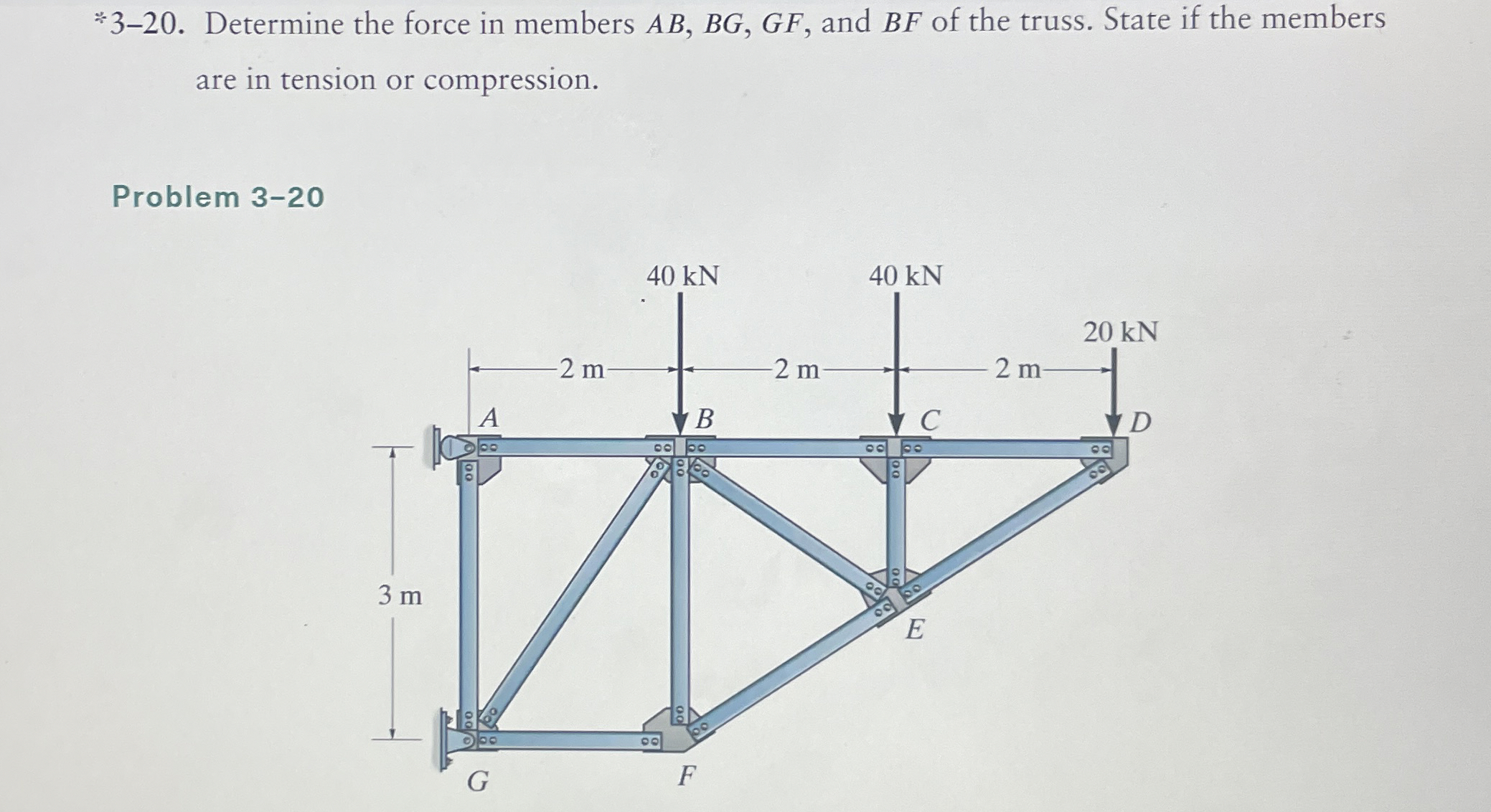

**3-20. Determine the force in members AB,BG,GF, and BF of the truss. State if the members
are in tension or compression.
Problem 3-20. SOLVE USING METHOD OF SECTIONS PLEASE
* * 3 - 2 0 . Determine the force in members A B

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
