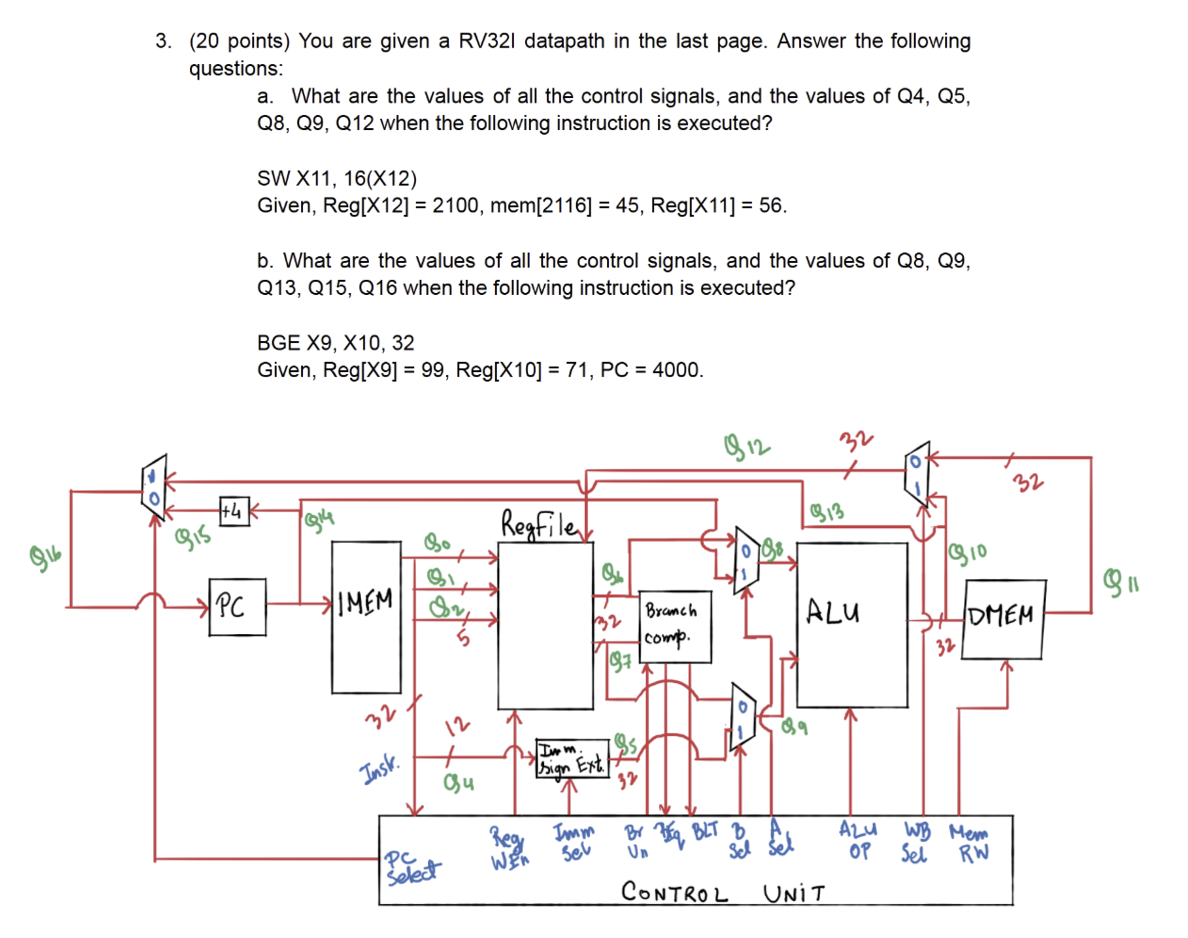

Question: 3 . ( 2 0 points ) You are given a RV 3 2 I datapath in the last page. Answer the following questions: a

3.(20 points) You are given a RV32I datapath in the last page. Answer the following questions:
a. What are the values of all the control signals, and the values of Q4, Q5, Q8, Q9, Q12 when the following instruction is executed?
SW X11,16(X12)
Given, Reg[X12]=2100, mem[2116]=45, Reg[X11]=56.
b. What are the values of all the control signals, and the values of Q8, Q9, Q13, Q15, Q16 when the following instruction is executed?
BGE X9, X10,32
Given, Reg[X9]=99, Reg[X10]=71, PC =4000.
