Question: 3 - 2 2 . Determine the force in members B G , H G , and B C of the truss and state if

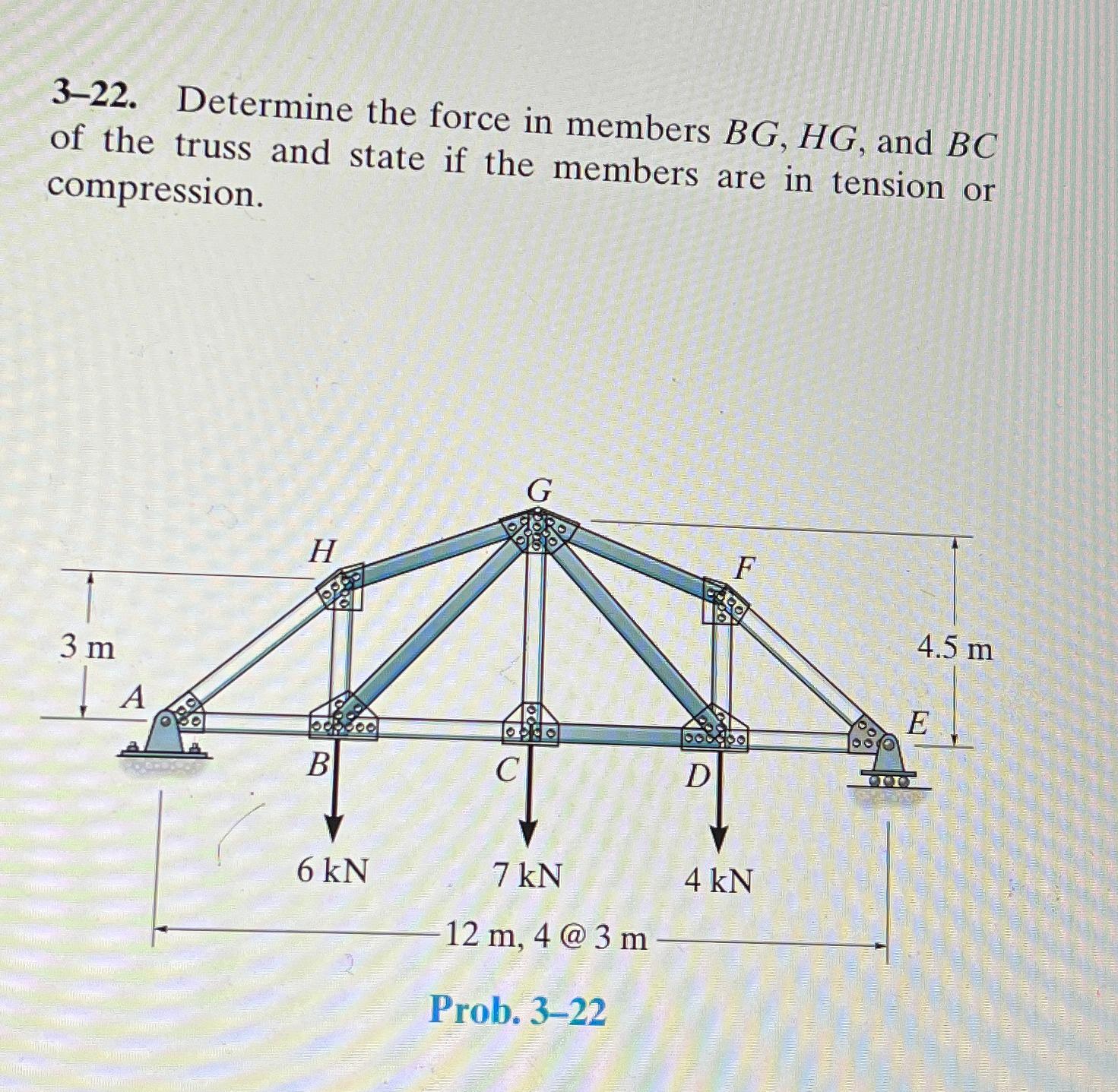

3-22. Determine the force in members BG,HG, and BC of the truss and state if the members are in tension or compression.
Prob. 3-22
3 - 2 2 . Determine the force in members B G , H

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

3 (25 points) Determine the force in members GF, FC, and CD of the bridge truss. State if the members are in tension of com- pression. Assume all members are pin connected. G A H A B 40 ft- 40 ft-...

Q:

a. Complete the overall free body diagram for the truss by drawing ALL the reaction forces at A and L.L is a roller and A is a pin. b. Determine the reactions at supports A and L. c. Use the Method...

Q:

The Pratt bridge truss is subjected to the loading shown. Determine the force in members JI, JE, and DE, and state if the members are in tension or compression. Units Used: kN = 103 N Given: F1 =...

Q:

The roof truss supports the vertical loading shown. Determine the force in members BC, CK, and KJ and state if these members are in tension or compression. Units Used: kN = 103 N Given: F1 = 4kN F2 =...

Q:

The Howe bridge truss is subjected to the loading shown. Determine the force in members HI, HB, and BC, and state if the members are in tension orcompression. 40 kN 30 kN 20 kN 20 kN G. . D. 16 m,...

Q:

Determine the force in each member of the roof truss. State if the members are in tension or compression. Assume all members are pin connected. 3 m E- |B |C 10 kN 10 kN 10 kN -4 m-4m-4 m-4 m-

Q:

Determine the force in each member of the roof truss. State if the members are in tension or compression.Assume B is a pin and C is a roller support. H60. 60 60 30 60 B 2 m - 2 m- 2 kN 2 kN

Q:

The skewed truss carries the load shown. Determine the force in members AB, BF, and EF and state if these members are in tension or compression. Assume that all joints are pinned. TIP - E. B FE FBF ...

Q:

Determine the force in members HG, BG, and BC and state whether they are in tension or compression. A -5 ft 2 k H B -5 ft- 2 k G C -5 ft- Prob. F3-7 2 k 00 D -5 ft- E 5 ft

Q:

Determine the force in members GF, CF, and CD and state whether they are in tension or compression. 4 ft H B 500 lb 4 ft G 500 lb 4 ft Prob. F3-12 8 D 500 lb 4 ft E 1 ft 3 ft
