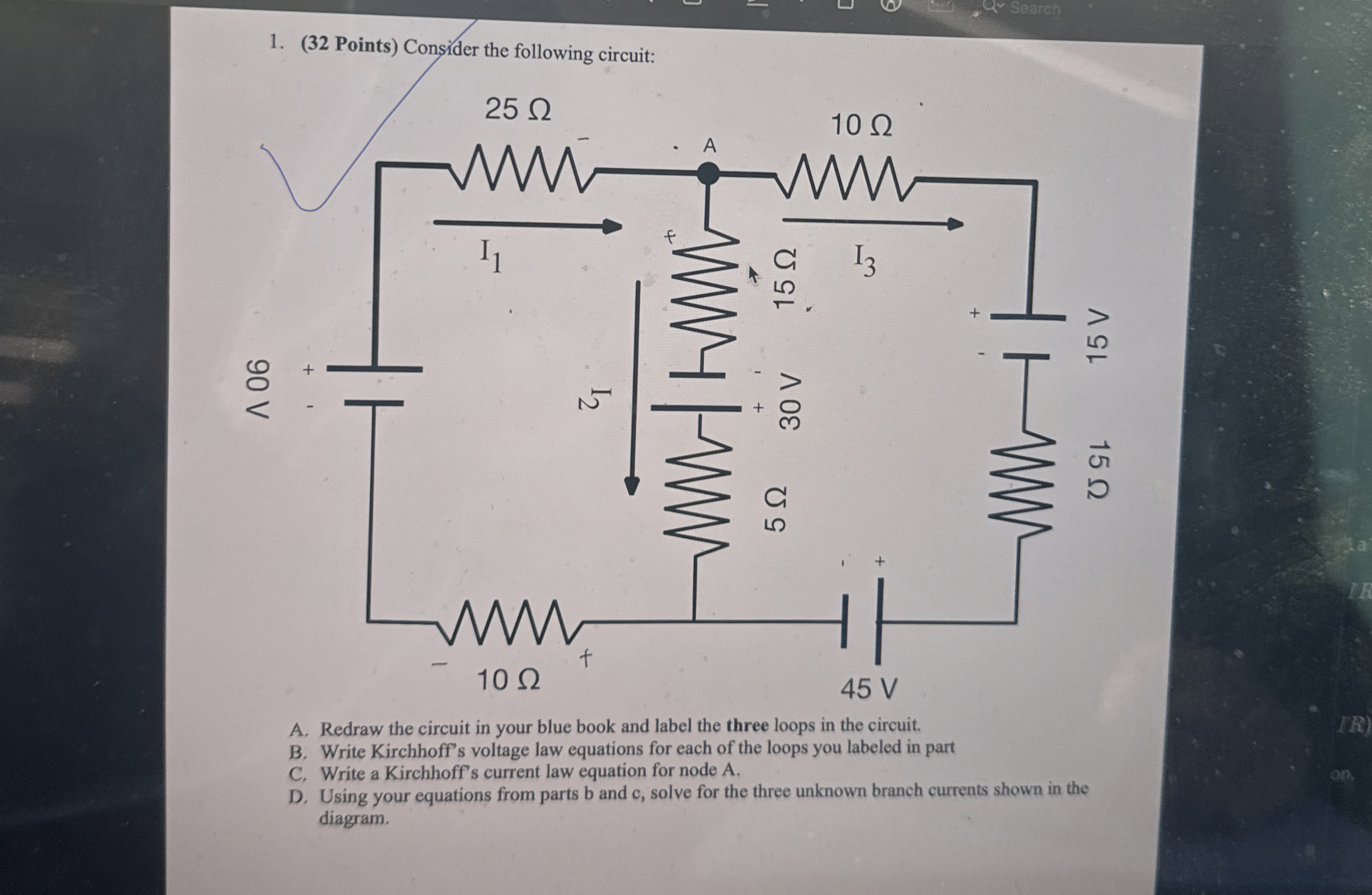

Question: ( 3 2 Points ) Consider the following circuit: B . Write Kirchhoff's voltage law equations for each of the loops you labeled in part

(32 Points) Consider the following circuit:
B. Write Kirchhoff's voltage law equations for each of the loops you labeled in part
C, Write a Kirchhoff's current law equation for node A.
D. Using your equations from parts b and c , solve for the three unknown branch currents shown in the diagram.
( 3 2 Points ) Consider the following circuit: B

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
